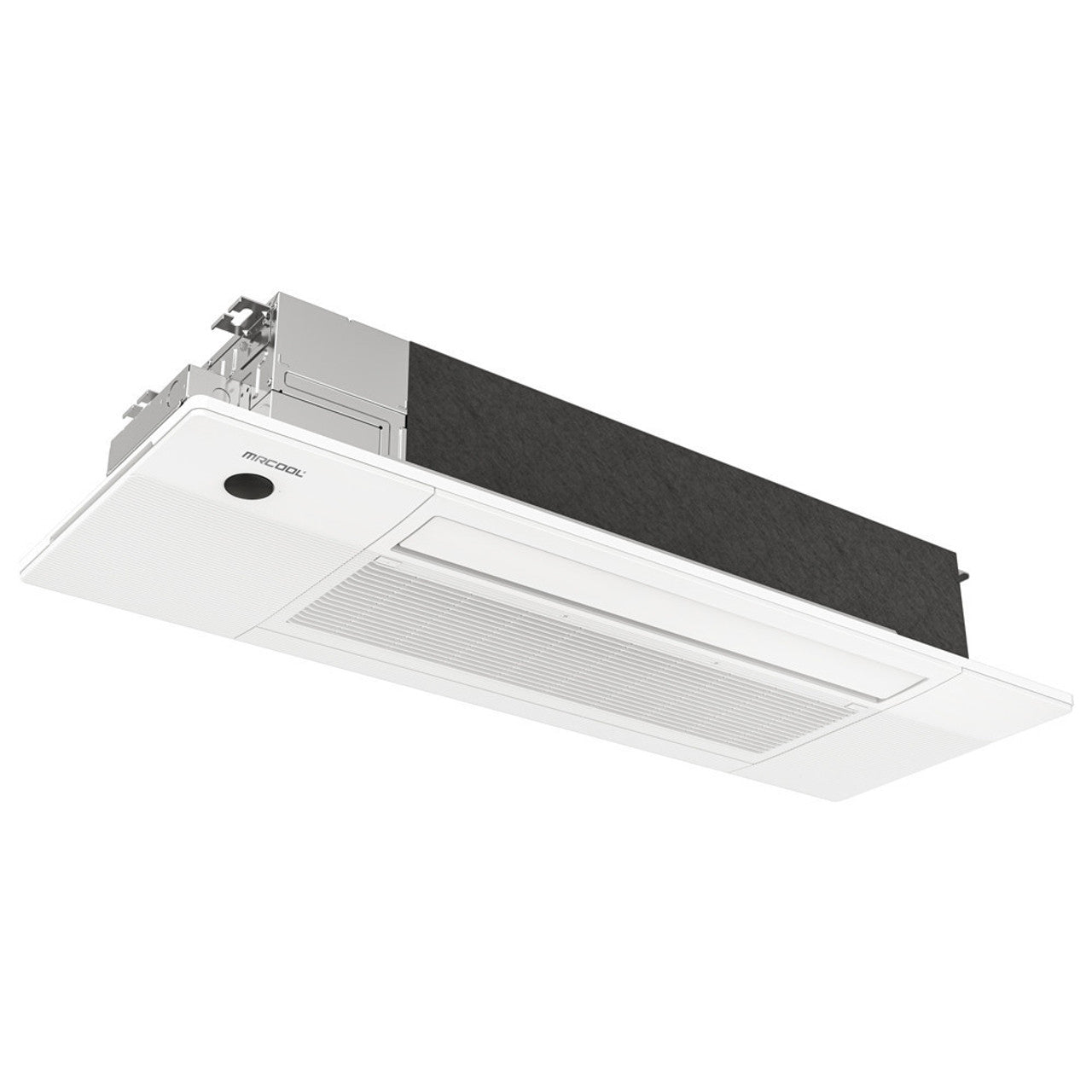

The 5th Generation MRCOOL® DIY® Series OuttaSight® 12K BTU 230V One-Way Ceiling Cassette is a sleek, efficient, and space-saving climate solution for areas up to 550 sq. ft. Engineered for easy installation, it seamlessly integrates into multi-zone systems, making it ideal for both new constructions and retrofit projects without requiring ductwork or wall space. Designed for discreet placement, this cassette mounts flush between 16” ceiling joists, including pre-manufactured I-joists, providing a clean, modern appearance while maximizing room layout flexibility. It connects effortlessly to the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with R-454B, a more environmentally friendly refrigerant, eliminating the need for vacuuming and reducing installation time. With advanced filtration technology, this unit enhances indoor air quality, while the Elevation function lowers the filter panel for easy maintenance and cleaning. It operates quietly, ensuring a comfortable and peaceful environment in any room. The cassette is fully controllable through a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant, giving you ultimate convenience and customization. Backed by an industry-leading warranty, including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, this system offers long-term dependability and year-round comfort.
Product Overview
This is a ductless mini-split AC/Heat Pump unit with Wi-Fi compatibility and smart home features. It’s designed for residential or light commercial use with a balance of power efficiency, comfort features, and compact design.
Performance Specs
-
Cooling Capacity: 12,000 BTU
-
Heating Capacity: 12,000 BTU
-
Airflow (CFM): 353 / 312 / 283 / 247 / 177
-
Blower Motor RPM: 1075 / 982 / 797
-
Decibel Rating (dBA):
-
Low: 24 dBA
-
Normal: 37 dBA
-
High: 41 dBA
-
-
Filter Type: Reusable
Electrical Specs
-
Voltage Requirements: 208–230V
-
Phase: 1
-
Cycle: 60 Hz
-
Max Fuse/Breaker: 15 A
-
Minimum Circuit Ampacity: 3 A
-
Rated Load: 1 A
Features
-
Modes: Auto Cool, Quiet Mode, Sleep Mode, Fan Only
-
Smart Features:
-
Wi-Fi Compatible
-
App Compatible
-
Works with iOS & Android
-
-
Remote Control: Included
-
Filter: Reusable
-
Has Batteries, Electronics, Chemicals, Aerosols, Compressed Gas: Yes
-
Proposition 65 Warning: Yes
-
Restricted Shipping States: GU, PR, VI
Dimensions & Weight
-
Indoor Unit (Net):
-
Width: 50.31 in
-
Height: 8.98 in
-
Depth: 13.19 in
-
Weight: 45 lbs
-
-
