Goodman

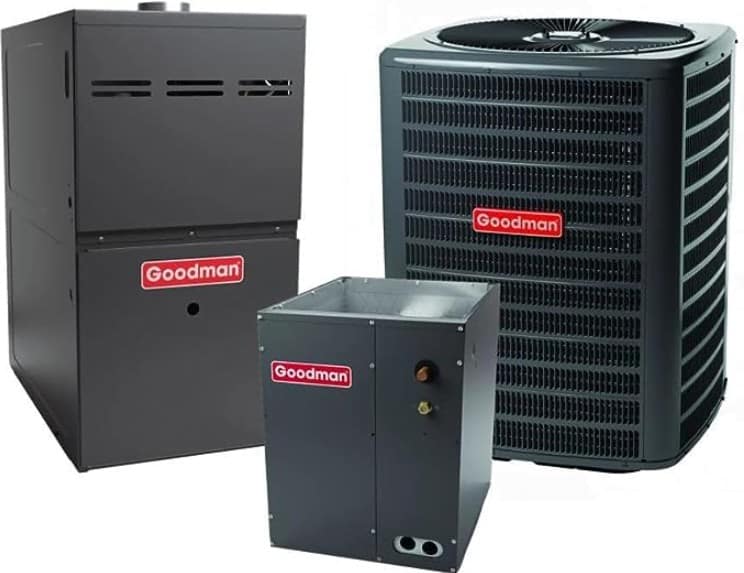

2 Ton Goodman 17.2 SEER2 Downflow AC system with 80% AFUE 60k BTU 2 stage Low NOx Furnace (GSXC702410, CAPTA2422B4, GCVC800603BX) – GSXC702410, CAPTA2422B4, GCVC800603BX

2 Ton Goodman 17.2 SEER2 Downflow AC system with 80% AFUE 60k BTU 2 stage Low NOx Furnace (GSXC702410, CAPTA2422B4, GCVC800603BX) – GSXC702410, CAPTA2422B4, GCVC800603BX

$9,953.21 USD
$9,953.21 USD
Sale Sold out
Shipping calculated at checkout.
Installation Type Ducted
Item Stocking Unit of Measure (UOM) EA
Pallet Qty 1
Country of Origin USA
US HTS Code 8415.90.8065
Product Description – (PIM) 17.2 seer2 hp, 2 ton
Compressor LRA 62.9 A
Compressor RLA 10.0 A
Max Overcurrent Protection 25 A
Max Voltage 253 V
Min. Circuit Amps 15.3 A
Min. Voltage 197 V
Outdoor Fan FLA 2.8 A
Power Frequency 60 Hz
Power Phase 1 Ph
Power Voltage 208/230 V
Condenser Fan Horsepower 1/3 metric hp
Factory Std. Refrigerant Charge 105 oz
Proposition 65 Label Yes
Dimensions – (Case Depth) 37.00 in
Dimensions – (Case Height) 42.00 in
Dimensions – (Case Width) 37.00 in
Weight – (Case) 241.090 lb


Product Specifications – GCVC800603BX

Installation Type Ducted
Communication Feature Yes
Communication Feature Type ComfortBridge Technology compatible
Serialized Flag Yes
Item Stocking Unit of Measure (UOM) EA
Pallet Qty 4
Country of Origin USA
US HTS Code 7322.90.0015
Product Description – (PIM) fer uf furnace
AFUE 80 %
AHRI Reference Number 204633299
ENERGY STAR® Certified No
Installation Configuration Upflow/Horizontal
Temperature Rise Range High Fire 15-45 °F
Temperature Rise Range Low Fire 15-45 °F
Current Type AC
Max Overcurrent Protection 15 A
Min. Circuit Amps 7.75 A
Power Frequency 60 Hz
Power Phase 1 Ph
Power Voltage 115 V
Air Flow Rate (High) – Heating 1400 ft³/min
Air Flow Rate (Low) – Heating 980 ft³/min
ANSI Certifed Yes
Blower Available AC Tonnage High 3 Tonnage
Blower Available AC Tonnage Low 1.5 Tonnage
Blower Motor RPM 1200 r/min
Dimensions – (Blower Diameter) 10 in
Dimensions – (Blower Width) 8 in
Dimensions – (Unit Depth) 28 in
Dimensions – (Unit Height) 33.3 in
Dimensions – (Unit Width) 17-1/2 in
ETL Listed Yes
External Static Pressure – (Rated) 0.5
Filter Quantity 1
Filter Size – (Min) 16X25
Heat Exchanger Type Gas
Minimum Clearances to Combustible Materials 1 ft
Motor Speed Type Variable Speed ECM
NOx Burner Type Low NOx
Number Of Burners 3
Weight – (Unit) 105 lb
Vent Diameter 4 in
Proposition 65 Label Yes
Dimensions – (Case Depth) 30.00 in
Dimensions – (Case Height) 35.50 in
Dimensions – (Case Width) 18.50 in
Weight – (Case) 99.000 lb
