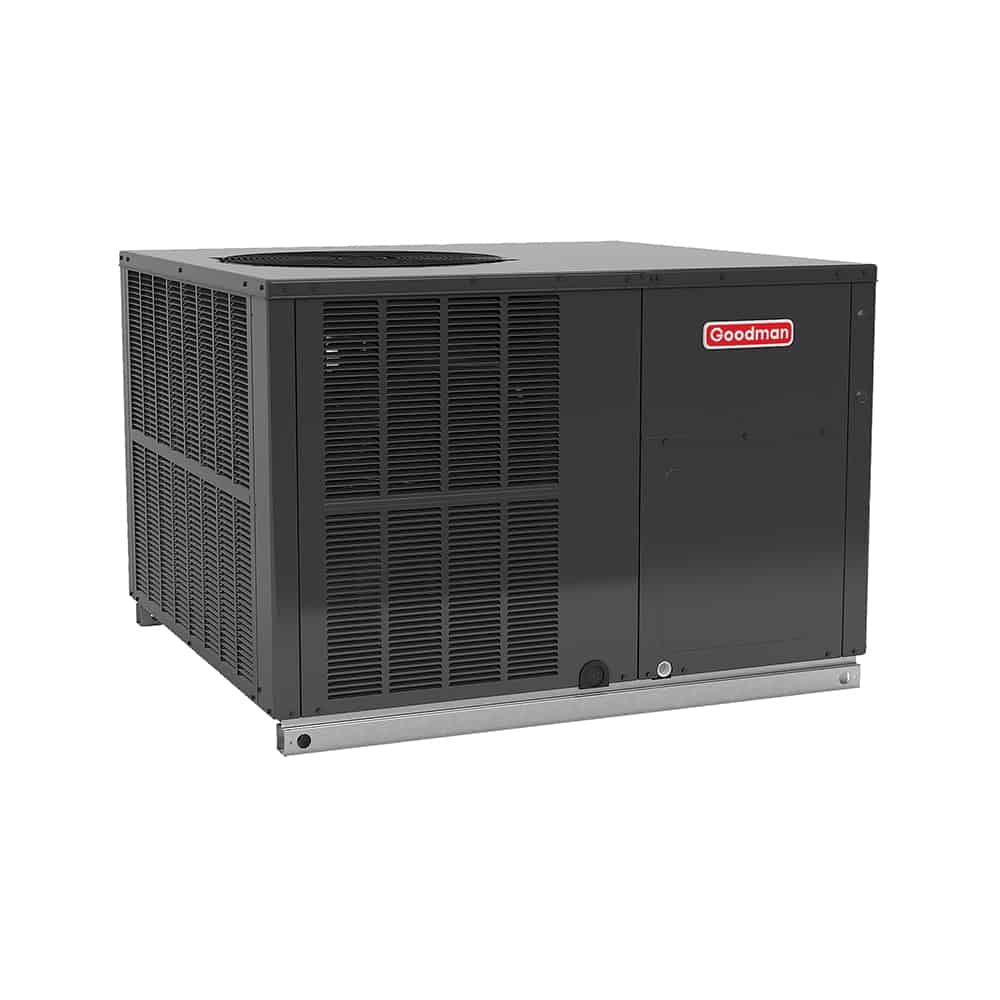

2 Ton Goodman Packaged Heat Pump 16 SEER, Single Stage, Horizontal – GPH1624H41

2 Ton Goodman Packaged Heat Pump 16 SEER, Single Stage, Horizontal – GPH1624H41

$3,541.17 USD
$3,541.17 USD
Sale Sold out
Shipping calculated at checkout.
Installation Type Ducted
DOE Regional Compliance Southwest;Southeast;North
Serialized Flag Yes
Item Stocking Unit of Measure (UOM) EA
Pallet Qty 1
Country of Origin USA
US HTS Code 8415.82.0115
Product Description – (PIM) 2 ton pkgd 16 seer hp
COP17 (HSVTC) 2.4
COP47 (HSVTC) 3.8
EER (HSVTC) 13
HSPF (HSVTC) 8
SEER (HSVTC) 16
Total BTU/h 24000 Btu/H
Installation Configuration Horizontal
Compressor LRA 58.3 A
Compressor RLA 12.8 A
Max Overcurrent Protection 30 A
Max Voltage 253 V
Min. Circuit Amps 20.8 A
Min. Voltage 197 V
Power Frequency 60 Hz
Power Phase 1 Ph
Power Voltage 208/230 V
Compressor Stages Single Stage
Compressor Type Scroll
Condenser Coil Metal Type Aluminum
Condenser Coil Rows 2
Condenser Fan Blade Count 3
Condenser Fan Diameter 22 in
Condenser Fan RPM 815 r/min
Condenser Fin Density – (Fins Per Inch) 16
Dimensions – (Evap Wheel Diameter) 10 in
Dimensions – (Evap Wheel Width) 8 in
Dimensions – (Unit Depth) 34 in
Dimensions – (Unit Height) 30 in
Dimensions – (Unit Width) 66-1/2 in
Expansion Device TXV
Motor Speed Type Multi Speed ECM
Number of Speeds 5
Sound Pressure (High) – Cooling 76 dBA
Weight – (Unit) 315 lb
Condenser Fan Horsepower 1/6 metric hp
Evap Motor Horsepower 1/2 metric hp
Tonnage 2
Condensate Drain Outlet 3/4 in
Factory Std. Refrigerant Charge 116 oz
Refrigerant Type R-410A
Proposition 65 Label Yes
Dimensions – (Case Depth) 68.00 in
Dimensions – (Case Height) 31.00 in
Dimensions – (Case Width) 35.00 in
Weight – (Case) 420.000 lb
