Goodman

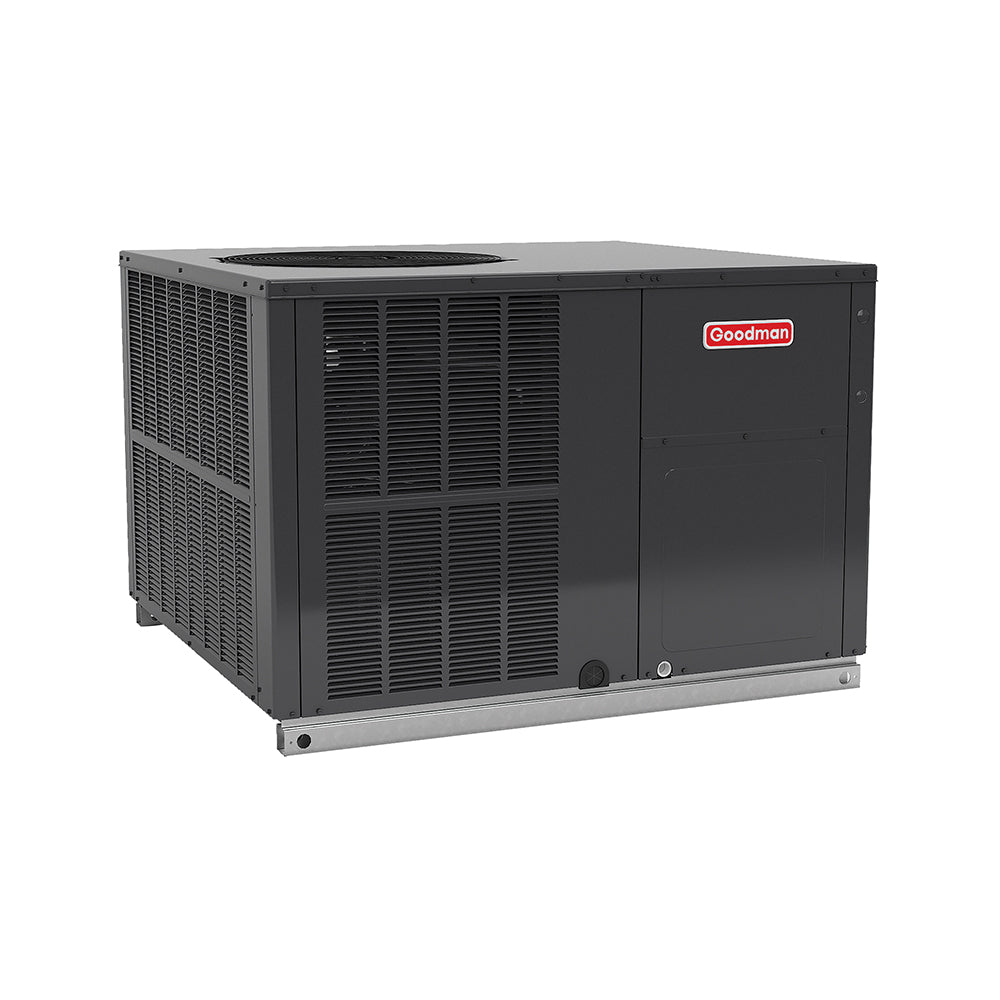

4 Ton Goodman Packaged Gas/Electric/Dual 14 SEER, Single Stage, Downflow/Horizontal - GPG1448100M41

4 Ton Goodman Packaged Gas/Electric/Dual 14 SEER, Single Stage, Downflow/Horizontal - GPG1448100M41

$4,974.00 USD
$4,974.00 USD
Sale Sold out
Shipping calculated at checkout.

 Product Specifications

Installation Type Ducted
DOE Regional Compliance Southwest;Southeast;North

Serialized Flag Yes
Item Stocking Unit of Measure (UOM) EA
Pallet Qty 1
Country of Origin USA
US HTS Code 8415.82.0120
Product Description - (PIM) 4.0t pkg gas 14 seer 100k 1 ph
AFUE 0.81 %
AHRI Reference Number 7505446
Cooling Capacity - (Nominal) 48000 Btu/H
EER (HSVTC) 11
Heating Capacity - (Nominal) 100000 Btu/H
SEER (HSVTC) 14
Total BTU/h 36800 Btu/H
Installation Configuration Downflow/Horizontal
Temperature Rise Range High Fire 65 °F
Temperature Rise Range Low Fire 35 °F
Compressor LRA 124.0 A
Compressor RLA 18.5 A
Indoor Blower FLA 5.4 A
Max Overcurrent Protection 45.0 A
Max Voltage 253 V
Min. Circuit Amps 30.5 A
Min. Voltage 197 V
Outdoor Fan FLA 2 A
Outdoor Fan LRA 2.9 A
Power Frequency 60 Hz
Power Phase 1 Ph
Power Voltage 208/230 V
Total Unit Amps 528 A
Air Flow Rate (High) - Cooling 1525 ft³/min
Compressor Quantitiy 1
Compressor Stages Single Stage
Compressor Type Scroll
Condenser Coil Metal Type Aluminum
Condenser Coil Rows 2
Condenser Fan Blade Count 3
Condenser Fan Diameter 22 in
Condenser Fan RPM 1075 r/min
Condenser Fin Density - (Fins Per Inch) 27
Dimensions - (Blower Diameter) 11 in
Dimensions - (Blower Width) 10 in
Dimensions - (Evap Wheel Diameter) 11 in
Dimensions - (Evap Wheel Width) 10 in
Dimensions - (Unit Depth) 51 in
Dimensions - (Unit Height) 42-1/2 in
Dimensions - (Unit Width) 47 in
Expansion Device Orifice
Heat Exchanger Type Air Cooled
Motor Speed Tap T4
Motor Speed Type Single Speed EEM
Orifice Size - (Natural) 45 in
Orifice Size - (Propane) 1.25 mm
Sound Pressure (High) - Cooling 80 dBA
Weight - (Unit) 538 lb
Condenser Fan Horsepower 1/4 metric hp
Cooling Capacity - (Rated) 46500 Btu/H
Evap Motor Horsepower 3/4 metric hp
Heating Capacity - (Rated) 100000 Btu/H
Tonnage 4
Condensate Drain Outlet 3/4 in
Factory Std. Refrigerant Charge 107 oz
Pipe Size Gas 1/2 in
Pipe Size Liquid 3/8 in
Refrigerant Type R-410A
Proposition 65 Label Yes
Dimensions - (Case Depth) 52.00 in
Dimensions - (Case Height) 43.00 in
Dimensions - (Case Width) 48.00 in
Weight - (Case) 463.000 lb
