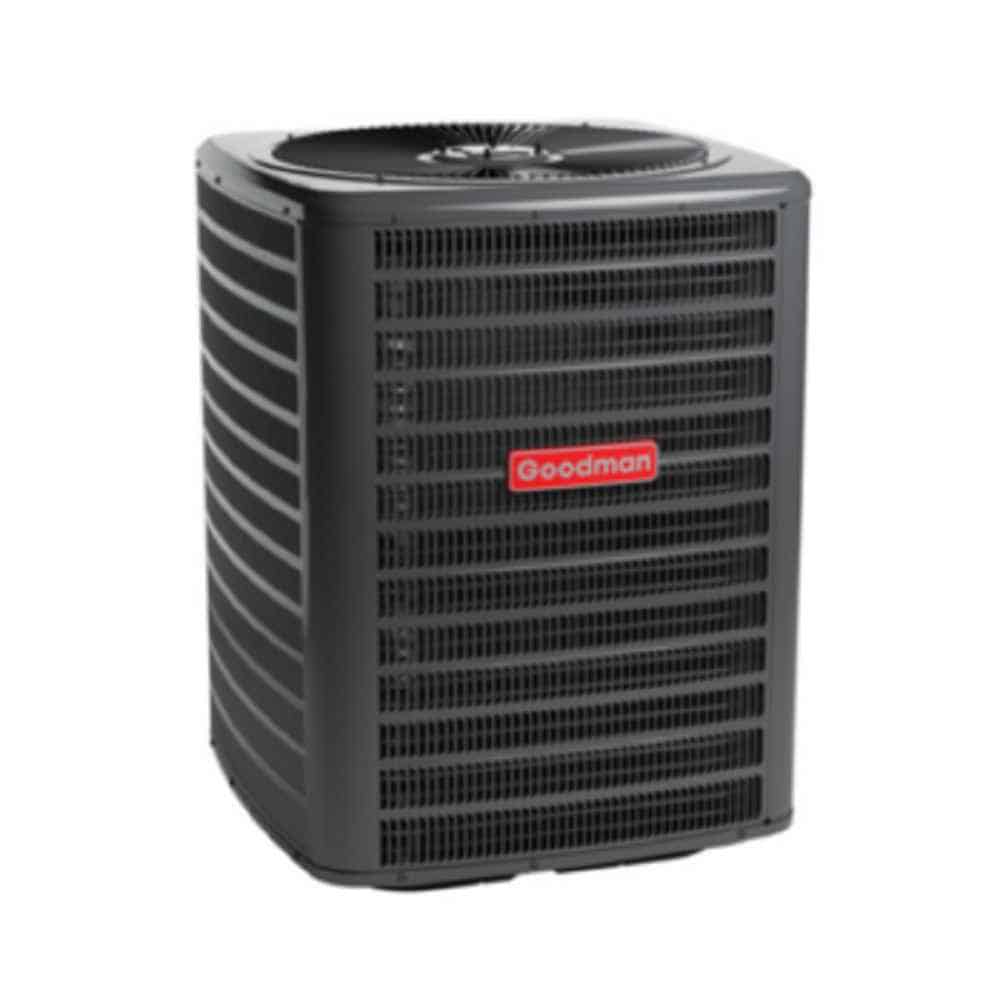

4 Ton Goodman Split Air Conditioner 16 SEER, Single Stage – GSX16S481

4 Ton Goodman Split Air Conditioner 16 SEER, Single Stage – GSX16S481

$2,146.44 USD
$2,146.44 USD
Sale Sold out
Shipping calculated at checkout.

Installation Type Ducted
Communication Feature No
DOE Regional Compliance North;Southeast
Serialized Flag Yes
Item Stocking Unit of Measure (UOM) EA
Pallet Qty 1
Country of Origin USA
US HTS Code 8415.90.8065
Product Description – (PIM) 16 SEER, Air Conditioner, 4 Ton
AHRI Reference Number 201785239
Cooling Capacity – (Nominal) 45500 Btu/H
EER (HSVTC) 12
ENERGY STAR® Certified No
SEER (HSVTC) 14.5
Cooling Operation Range – (Std. Max) 125 °F
Cooling Operation Range – (Std. Min) 55 °F
Rated Cooling Condition – (Ambient DB) 95 °F
Rated Cooling Condition – (Ambient WB) 75 °F
Rated Cooling Condition – (Room DB) 80 °F
Rated Cooling Condition – (Room WB) 67 °F
Subcooling Temp at Service Valve 7-9 °F
Superheat Temp at Service Valve 7-9 °F
Compressor LRA 112 A
Compressor RLA 17.9 A
Control Voltage Conduit Size 1/2 in;3/4 in
Current Type AC
Max Overcurrent Protection 40 A
Max Voltage 253 V
Min. Circuit Amps 23.7 A
Min. Voltage 197 V
Outdoor Fan FLA 1.3 A
Outdoor Fan LRA 3.0 A
Power Frequency 60 Hz
Power Phase 1 Ph
Power Supply Conduit Size 1/2 in;3/4 in
Power Voltage 208/230 V
Air Flow Rate (High) – Cooling 1525 ft³/min
ANSI Certifed Yes
Compressor Sound Blanket No
Compressor Stages Single Stage
Compressor Type Scroll
Condenser Fan Blade Count 3
Condenser Fan Diameter 26 in
Condenser Fan RPM 830 r/min
Dimensions – (Unit Depth) 35-3/4 in
Dimensions – (Unit Height) 40 in
Dimensions – (Unit Width) 35-3/4 in
Energy Source Electric
ETL Listed Yes
Expansion Device TXV
Indoor Orifice Size .078 in
Motor Speed Type Single Speed PSC
Sound Pressure (High) – Cooling 73 dBA
Sound Pressure (Low) – Cooling N/A dBA
System High Pressure 450 lb/in²
System Low Pressure 240 lb/in²
Weight – (Unit) 219 lb
Condenser Fan Horsepower 1/4 metric hp
Cooling Capacity – (Max) 45500 Btu/H
Cooling Capacity – (Min) 43000 Btu/H
Cooling Capacity – (Rated) 45500 Btu/H
Cooling Capacity – (Sensible) 35000 Btu/H
Cooling Input Power 3.1 kW
Sensible Heat Ratio – (S/T) 0.79
Tonnage 4
Additional Refrigerant Charge – (oz/ft) 0.6
Factory Std. Refrigerant Charge 121 oz
Indoor TXV Kit TXV-48
Long Line Set Length – (Equivalent) 250 ft
Pipe Size Gas 7/8 in
Pipe Size Liquid 3/8 in
Refrigerant Pre-Charged Line Length 15 ft
Refrigerant Type R-410A
Standard Line Set Length – (Max) 80 ft
Standard Line Set Length – (Vertical) 50 ft
Valve Connection Type Sweat
Valve Size Liquid (O.D.) 3/8 in
Valve Size Suction (O.D.) 7/8 in
Vertical Length – (OD Above ID) 200 ft
Vertical Length – (OD Below ID) 80 ft
Proposition 65 Label Yes
Dimensions – (Case Depth) 37.00 in
Dimensions – (Case Height) 42.00 in
Dimensions – (Case Width) 37.00 in
Weight – (Case) 244.000 lb
