Goodman

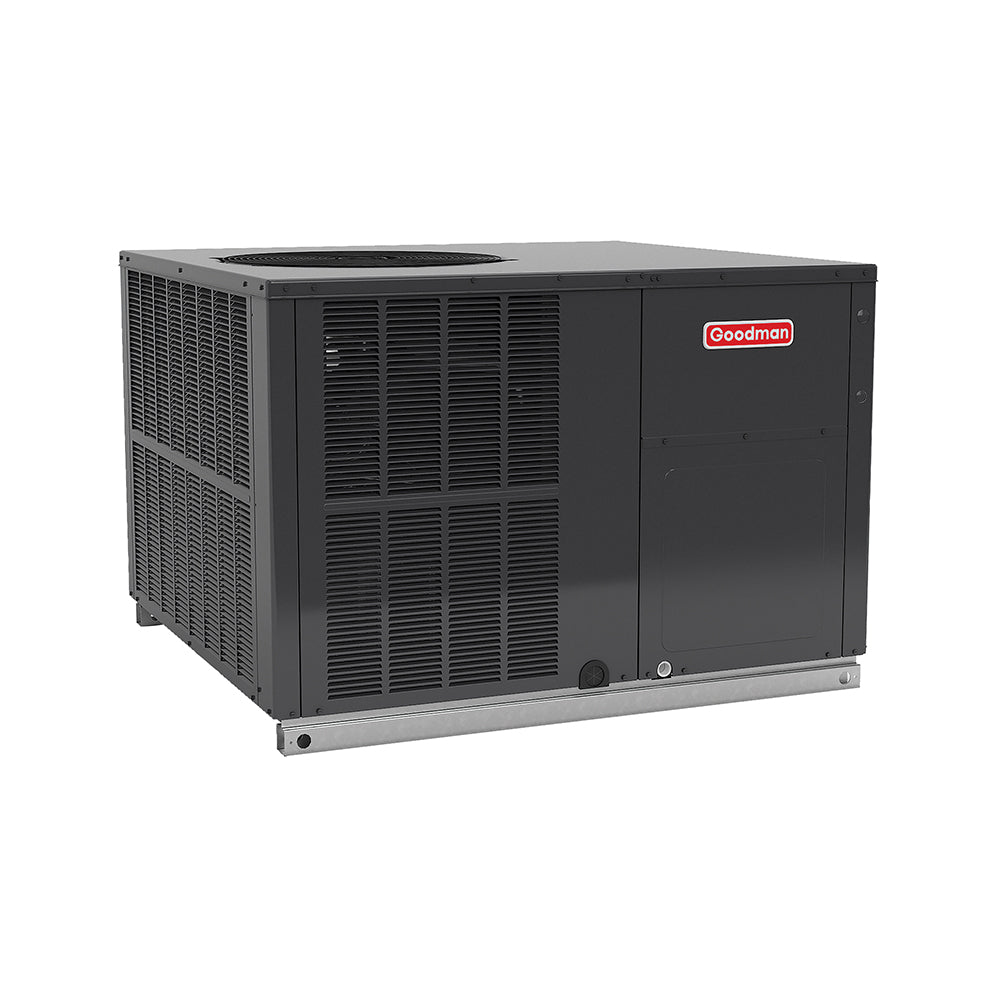

5 Ton Goodman Packaged Gas/Electric/Dual 14 SEER, Two Stage, Downflow/Horizontal - GPG1461100M41

5 Ton Goodman Packaged Gas/Electric/Dual 14 SEER, Two Stage, Downflow/Horizontal - GPG1461100M41

$5,170.46 USD
$5,170.46 USD
Sale Sold out
Shipping calculated at checkout.

Product Specifications

Installation Type Ducted
DOE Regional Compliance Southwest;Southeast;North

Serialized Flag Yes
Item Stocking Unit of Measure (UOM) EA
Pallet Qty 1
Country of Origin USA
US HTS Code 8415.82.0115
Product Description - (PIM) 5.0t pkg gas 14 seer 100k 1 ph
AFUE 0.81 %
AHRI Reference Number 8321898
Cooling Capacity - (Nominal) 60000 Btu/H
EER (HSVTC) 11
Heating Capacity - (Nominal) 100000 Btu/H
SEER (HSVTC) 14
Total BTU/h 57500 Btu/H
Installation Configuration Downflow/Horizontal
Temperature Rise Range High Fire 65 °F
Temperature Rise Range Low Fire 65 °F
Compressor LRA 147.2 A
Compressor RLA 22.9 A
Indoor Blower FLA 7.0 A
Max Overcurrent Protection 60 A
Max Voltage 253 V
Min. Circuit Amps 37.6 A
Min. Voltage 197 V
Outdoor Fan FLA 2 A
Power Frequency 60 Hz
Power Phase 1 Ph
Power Voltage 208/230 V
Total Unit Amps 30 A
Air Flow Rate (High) - Cooling 1700 ft³/min
Compressor Quantitiy 1
Compressor Stages Two Stage
Compressor Type Scroll
Condenser Coil Metal Type Aluminum
Condenser Coil Rows 2
Condenser Fan Blade Count 3
Condenser Fan Diameter 22 in
Condenser Fan RPM 1122 r/min
Condenser Fin Density - (Fins Per Inch) 27
Dimensions - (Blower Diameter) 11 in
Dimensions - (Blower Width) 10 in
Dimensions - (Evap Wheel Diameter) 11 in
Dimensions - (Evap Wheel Width) 10 in
Dimensions - (Unit Depth) 51 in
Dimensions - (Unit Height) 42-1/2 in
Dimensions - (Unit Width) 47 in
Expansion Device TXV
Heat Exchanger Type Air Cooled
Motor Speed Tap T3 L / T4 H
Motor Speed Type Single Speed EEM
Number Of Burners 5
Orifice Size - (Natural) 45 in
Orifice Size - (Propane) 1.25 mm
Sound Pressure (High) - Cooling 78 dBA
Weight - (Unit) 538 lb
Condenser Fan Horsepower 1/3 metric hp
Cooling Capacity - (Rated) 56000 Btu/H
Evap Motor Horsepower 1 metric hp
Heating Capacity - (Rated) 100000 Btu/H
Tonnage 5
Condensate Drain Outlet 3/4 in
Factory Std. Refrigerant Charge 100.0 oz
Pipe Size Gas 1/2 in
Pipe Size Liquid 3/8 in
Refrigerant Type R-410A
Proposition 65 Label Yes
Dimensions - (Case Depth) 52.00 in
Dimensions - (Case Height) 43.00 in
Dimensions - (Case Width) 48.00 in
Weight - (Case) 301.000 lb
