Goodman

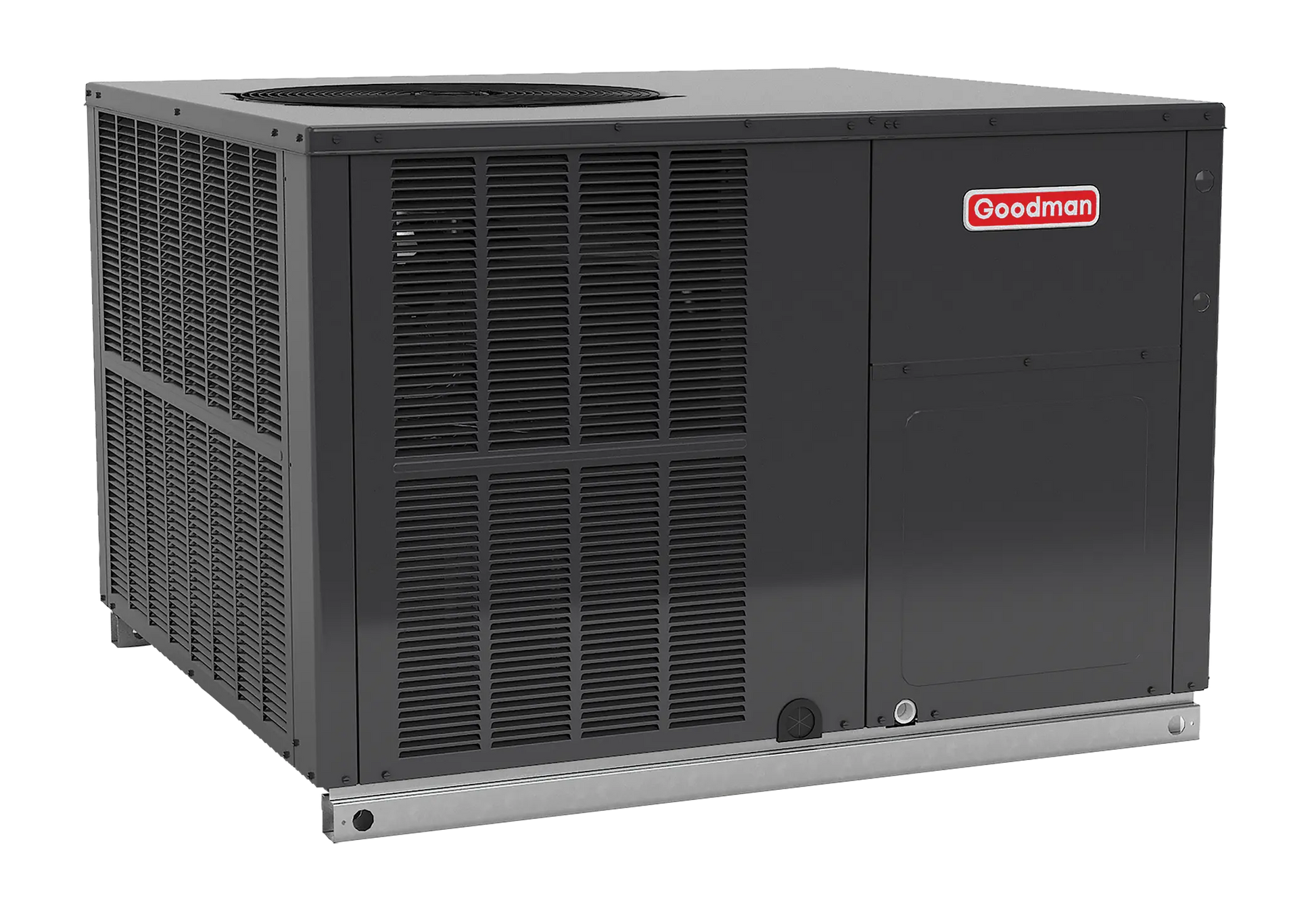

Goodman 14 SEER 2.0 Ton Gas Package 60K BTU Heating, R410A Refrigerant 1PH

Goodman 14 SEER 2.0 Ton Gas Package 60K BTU Heating, R410A Refrigerant 1PH

Regular price $3,364.92 USD
Regular price Sale price $3,364.92 USD
Sale Sold out
Shipping calculated at checkout.

The Goodman GPG14 SEER Packaged Gas/Electric Unit features high-efficiency performance and low operating costs. This 14 SEER Unit allows for a ground-level or rooftop mount and horizontal or down-flow applications. The GPG14 is housed in a heavy-gauge, zinc-coated steel cabinet that offers a high-quality, UV-resistant powder-paint finish. Heating operates out of the box on natural Gas, and can be easily converted to operate on propane With optional LP conversion kit. This Package Unit can be easily installed in manufactured or modular homes which use smaller (high static pressure) duct work. The Package Unit can also be easily converted to accommodate a plenum for normal or low-static applications. The Goodman Package Unit series are self-contained so the only connections needed for installation are the supply and return ducts, the line and low voltage wiring, and the drain connection. The Units are ETL listed and ARI certified.

Durable, corrosion-resistant T-140 aluminized steel tubular heat exchanger TXV expansion device on 5-ton units
Energy-efficient compressor Redundant gas valve with easy conversion to propane
All-aluminum evaporator coil Power-assisted combustion
Aluminum tube/aluminum fin coil Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, and all safety circuits complete with self-diagnostics
Multi-speed ECM indoor blower motor



Product Description - (PIM) 2.0t pkg gas 14 seer 60k 1 ph
Installation Type Ducted
AFUE 0.81 %
Universal Product Code (UPC) 663051605558
AHRI Reference Number 7505444
Cooling Capacity - (Nominal) 24000 Btu/H
Cooling Capacity - (Nominal) 24000 Btu/H
SEER (HSVTC) 14.0
Product ID GPG1424060M41
EER (HSVTC) 11
Max Voltage 253 V
Min. Voltage 197 V
Min. Circuit Amps 14.4 A
Power Frequency 60 Hz
Power Phase 1 Ph
Power Voltage 208/230 V
Air Flow Rate (High) - Cooling 800 ft³/min
Condenser Fan Horsepower 1/6 metric hp
Cooling Capacity - (Rated) 23000 Btu/H
Heat Exchanger Type Air Cooled
Sound Pressure (High) - Cooling 78 dBA
Cooling Capacity - (Rated) 23000 Btu/H
Pipe Size Gas 1/2 in
Refrigerant Type R-410A
Heating Capacity - (Rated) 60000 Btu/H
Tonnage 2
Pipe Size Gas 1/2 in
Refrigerant Type R-410A
Dimensions - (Shipping Unit Depth) 52.00 in
Dimensions - (Shipping Unit Height) 35.00 in
Dimensions - (Shipping Unit Width) 48.00 in
Weight - (Unit) 417 lb
Shipping Volume - (Unit) 87360.000 in³
Weight - (Shipping Unit) 364.000 lb
Installation Configuration Downflow/Horizontal
