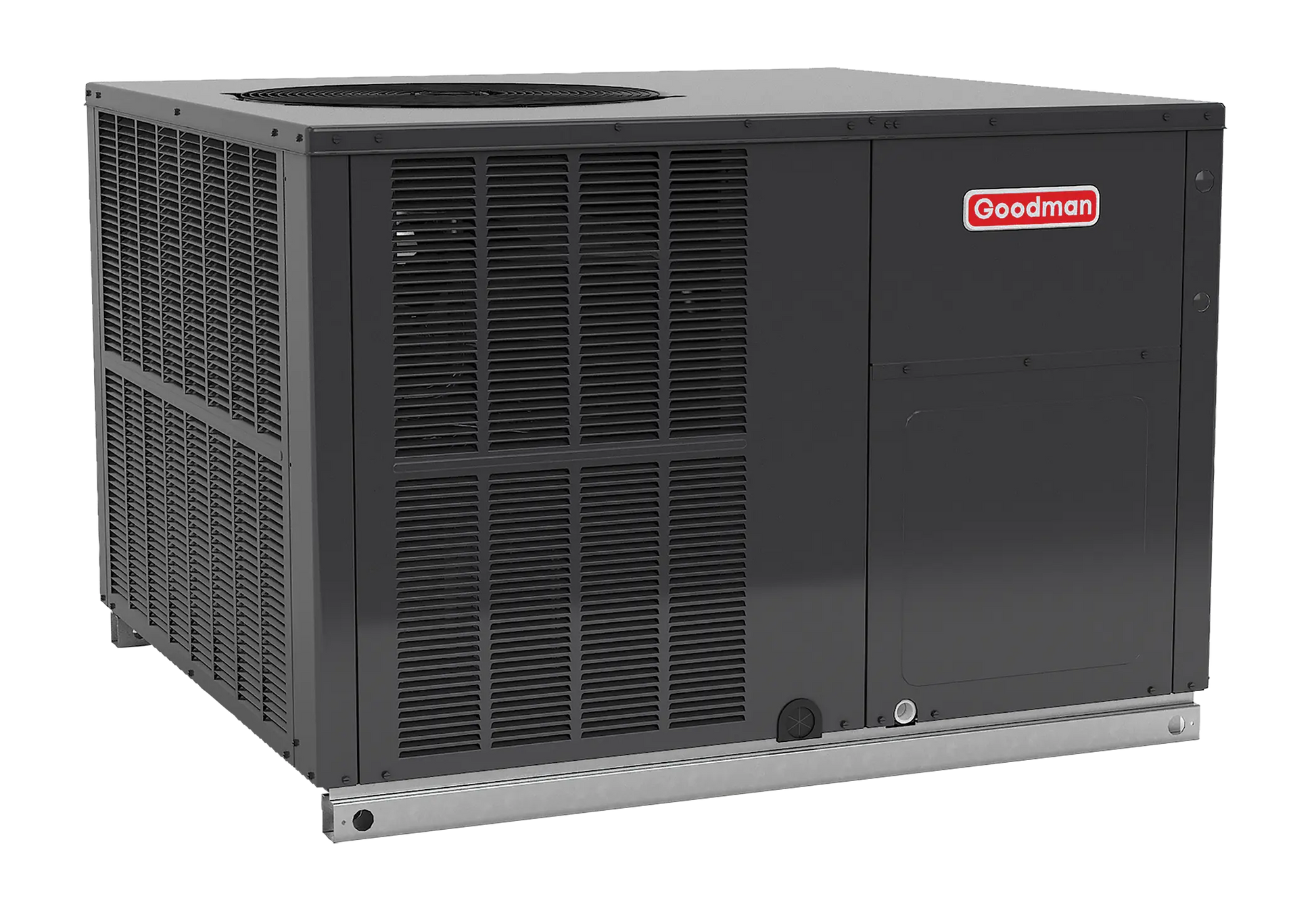

Goodman 14 SEER 3.5 Ton Package Gas 80K Heating, Refrigerant R410A 1PH
Goodman 14 SEER 3.5 Ton Package Gas 80K Heating, Refrigerant R410A 1PH
Couldn't load pickup availability
The Goodman GPG14 SEER Packaged Gas/Electric Unit features high-efficiency performance and low operating costs. This 14 SEER Unit allows for a ground-level or rooftop mount and horizontal or down-flow applications. The GPG14 is housed in a heavy-gauge, zinc-coated steel cabinet that offers a high-quality, UV-resistant powder-paint finish. Heating operates out of the box on natural Gas, and can be easily converted to operate on propane With optional LP conversion kit. This Package Unit can be easily installed in manufactured or modular homes which use smaller (high static pressure) duct work. The Package Unit can also be easily converted to accommodate a plenum for normal or low-static applications. The Goodman Package Unit series are self-contained so the only connections needed for installation are the supply and return ducts, the line and low voltage wiring, and the drain connection. The Units are ETL listed and ARI certified.
| Product Description - (PIM) | 3.5t pkg gas 14 seer 80k 1 ph |
| Installation Type | Ducted |
| AFUE | 0.81 % |
| Universal Product Code (UPC) | 663051518605 |
| AHRI Reference Number | 7505449 |
| Cooling Capacity - (Nominal) | 42000 Btu/H |
| Cooling Capacity - (Nominal) | 42000 Btu/H |
| SEER (HSVTC) | 14.0 |
| Product ID | GPG1442080M41 |
| EER (HSVTC) | 11 |
| Max Voltage | 253 V |
| Min. Voltage | 197 V |
| Min. Circuit Amps | 29.2 A |
| Power Frequency | 60 Hz |
| Power Phase | 1 Ph |
| Power Voltage | 208/230 V |
| Air Flow Rate (High) - Cooling | 1300 ft³/min |
| Condenser Fan Horsepower | 1/4 metric hp |
| Cooling Capacity - (Rated) | 40000 Btu/H |
| Heat Exchanger Type | Air Cooled |
| Sound Pressure (High) - Cooling | 78 dBA |
| Cooling Capacity - (Rated) | 40000 Btu/H |
| Pipe Size Gas | 1/2 in |
| Refrigerant Type | R-410A |
| Heating Capacity - (Rated) | 80000 Btu/H |
| Tonnage | 3.5 |
| Pipe Size Gas | 1/2 in |
| Refrigerant Type | R-410A |
| Dimensions - (Shipping Unit Depth) | 52.00 in |
| Dimensions - (Shipping Unit Height) | 43.00 in |
| Dimensions - (Shipping Unit Width) | 48.00 in |
| Weight - (Unit) | 523 lb |
| Shipping Volume - (Unit) | 107328.000 in³ |
| Weight - (Shipping Unit) | 466.000 lb |
| Installation Configuration | Downflow/Horizontal |
