Goodman

Goodman 14 SEER 5.0 Ton PKG Gas 120K 1PH

Goodman 14 SEER 5.0 Ton PKG Gas 120K 1PH

Regular price $5,204.24 USD
Regular price Sale price $5,204.24 USD
Sale Sold out
Shipping calculated at checkout.

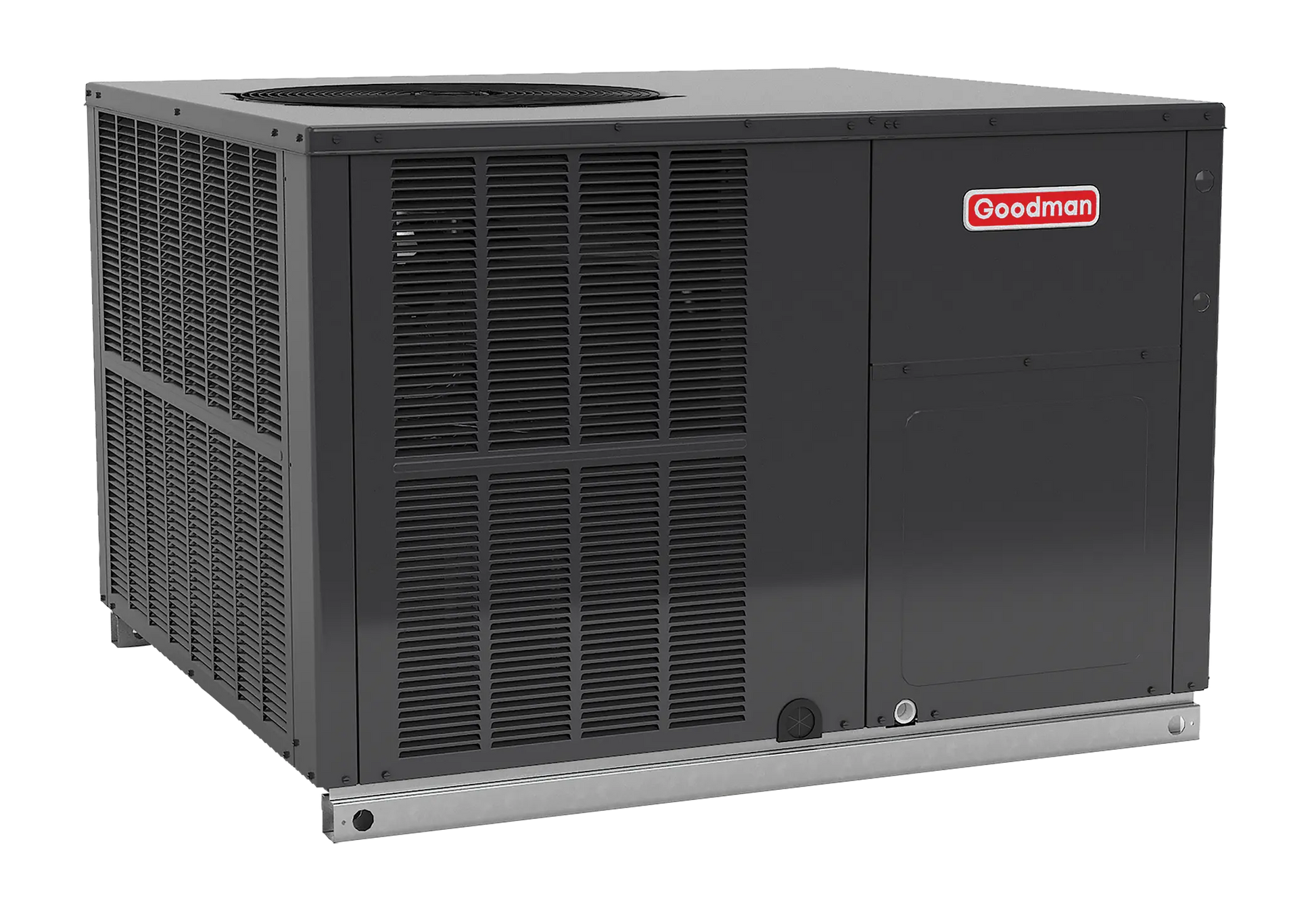

The Goodman GPG14 SEER Packaged Gas/Electric Unit features high-efficiency performance and low operating costs. This 14 SEER Unit allows for a ground-level or rooftop mount and horizontal or down-flow applications. The GPG14 is housed in a heavy-gauge, zinc-coated steel cabinet that offers a high-quality, UV-resistant powder-paint finish. Heating operates out of the box on natural Gas, and can be easily converted to operate on propane With optional LP conversion kit. This Package Unit can be easily installed in manufactured or modular homes which use smaller (high static pressure) duct work. The Package Unit can also be easily converted to accommodate a plenum for normal or low-static applications. The Goodman Package Unit series are self-contained so the only connections needed for installation are the supply and return ducts, the line and low voltage wiring, and the drain connection. The Units are ETL listed and ARI certified.

Product Description - (PIM) 5.0t pkg gas 14 seer 120k 1 ph
Installation Type Ducted
AFUE 81 %
Universal Product Code (UPC) 663051608870
AHRI Reference Number 8321898
Cooling Capacity - (Nominal) 60000 Btu/H
Cooling Capacity - (Nominal) 60000 Btu/H
SEER (HSVTC) 14.0
Product ID GPG1461120M41
EER (HSVTC) 11
Max Voltage 253 V
Min. Voltage 197 V
Min. Circuit Amps 37.6 A
Power Frequency 60 Hz
Power Phase 1 Ph
Power Voltage 208/230 V
Air Flow Rate (High) - Cooling 1700 ft³/min
Condenser Fan Horsepower 1/3 metric hp
Cooling Capacity - (Rated) 56000 Btu/H
Heat Exchanger Type Air Cooled
Sound Pressure (High) - Cooling 78 dBA
Cooling Capacity - (Rated) 56000 Btu/H
Pipe Size Gas 1/2 in
Refrigerant Type R-410A
Heating Capacity - (Rated) 120000 Btu/H
Tonnage 5
Pipe Size Gas 1/2 in
Refrigerant Type R-410A
Dimensions - (Shipping Unit Depth) 52.00 in
Dimensions - (Shipping Unit Height) 43.00 in
Dimensions - (Shipping Unit Width) 48.00 in
Weight - (Unit) 543 lb
Shipping Volume - (Unit) 107328.000 in³
Weight - (Shipping Unit) 501.000 lb
Installation Configuration Downflow/Horizontal
