Goodman

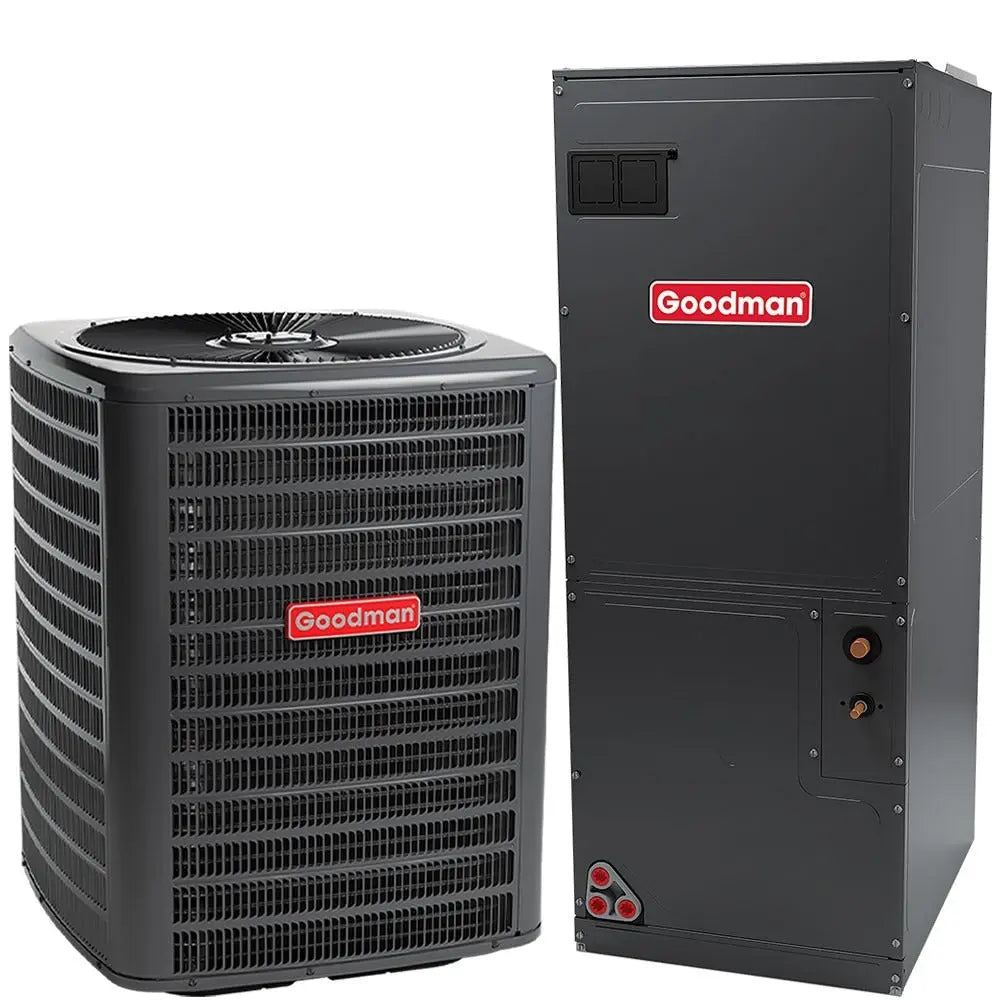

Goodman 2.5 Ton Air Handler Heat Pump Split System, Single Stage -GSXN403010
Goodman 2.5 Ton Air Handler Heat Pump Split System, Single Stage -GSXN403010
Couldn't load pickup availability
Goodman 2.5 Ton Air Handler Heat Pump Split System Overviewn
Product Specifications
| Item Stocking Unit of Measure (UOM) | EA |
| Pallet Qty | 2 |
| Country of Origin | USA |
| US HTS Code | 8415.90.8085 |
| Product Description - (PIM) | 15 seer ac, 2.5 ton |
| Cooling Capacity - (Nominal) | 30000 Btu/H |
| ENERGY STAR® Certified | No |
| SEER (HSVTC) | 14.3 |
| SEER2 (HSVTC) | 14.3 |
| Compressor LRA | 59.0 A |
| Compressor RLA | 11.6 A |
| Max Overcurrent Protection | 25 A |
| Max Voltage | 253 V |
| Min. Circuit Amps | 17.0 A |
| Min. Voltage | 197 V |
| Outdoor Fan FLA | 0.95 A |
| Power Frequency | 60 Hz |
| Power Phase | 1 Ph |
| Power Voltage | 208/230 V |
| Compressor Stages | Single Stage |
| Compressor Type | Rotary |
| Motor Speed Type | PSC |
| Weight - (Unit) | 180 lb |
| Condenser Fan Horsepower | 1/6 metric hp |
| Factory Std. Refrigerant Charge | 79 oz |
| Pipe Size Gas | 3/8 in |
| Pipe Size Liquid | 3/4 in |
| Proposition 65 Label | Yes |
| Dimensions - (Case Depth) | 30.50 in |
| Dimensions - (Case Height) | 42.00 in |
| Dimensions - (Case Width) | 30.00 in |
| Weight - (Case) | 191.090 lb |
The Goodman 2.5 Ton Air Handler Heat Pump Split System is a single-stage system designed to provide efficient heating and cooling of your home. This system includes the GSXN403010 air handler, which is equipped with a high-efficiency ECM motor that provides reliable performance and energy savings. The heat pump is also designed for high efficiency, with a SEER rating of up to 14 and an HSPF rating of up to 8.2.
The GSXN403010 air handler features a corrosion-resistant steel cabinet that protects against the elements and a foil-faced insulation that helps reduce sound levels. The air handler includes a factory-installed expansion valve and is compatible with R-410A refrigerant, which is designed to be environmentally friendly.
The Goodman 2.5 Ton Air Handler Heat Pump Split System is easy to install and designed for long-term reliability. The unit comes with a 10-year limited warranty on all parts, ensuring that you will have a dependable system for years to come. If you are looking for an efficient, reliable air conditioning split system for your home, the Goodman 2.5 Ton Air Handler Heat Pump Split System is a great choice.
