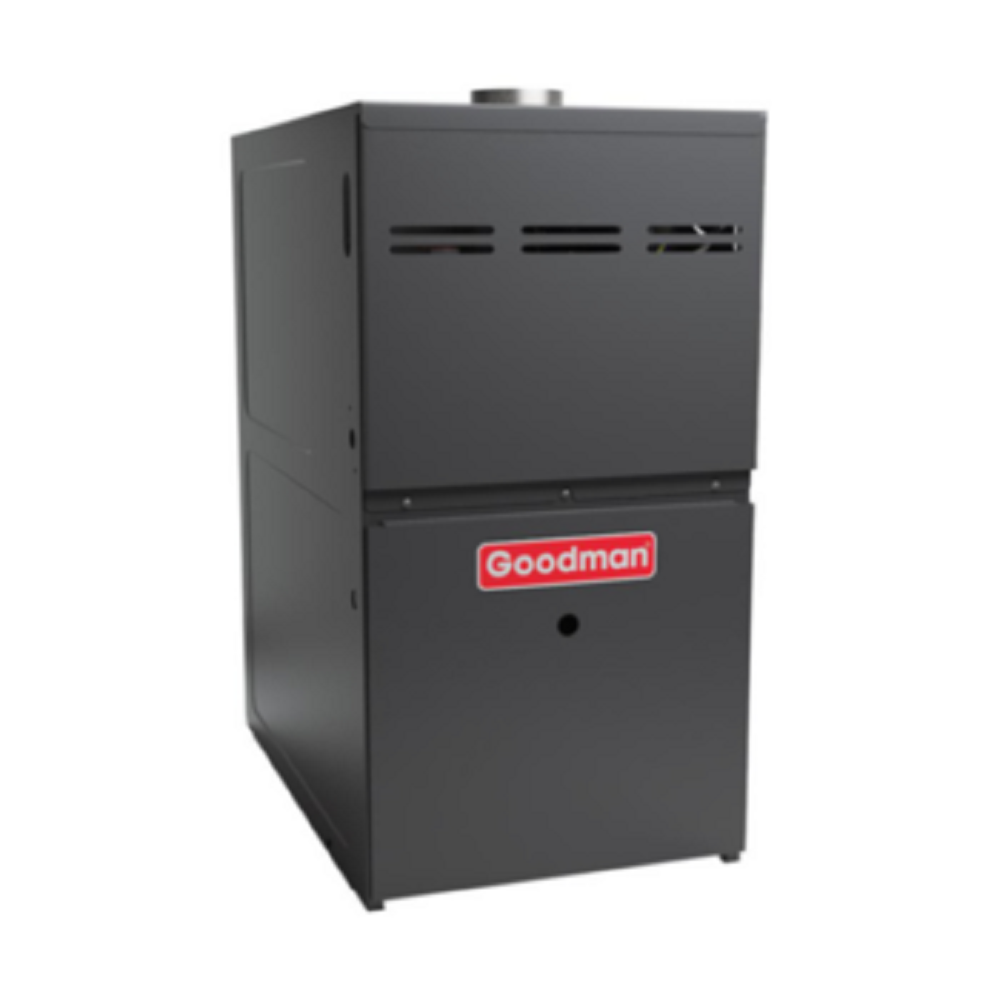

Goodman 80% AFUE Gas Furnace Multi Speed ECM, Single Stage -GM9S800804BU

Goodman 80% AFUE Gas Furnace Multi Speed ECM, Single Stage -GM9S800804BU

$1,957.00 USD
$1,957.00 USD
Sale Sold out
Shipping calculated at checkout.
Product Benefits
High reliability and quality Energy Efficient and quiet circulation
Durable and long igniter life Self-diagnostic control board with constant memory
Provisions for electronic air cleaner and humidifier Operates on two-stage or single-stage thermostats
Quiet and Economical heating Easy Connection for EAC and Humidifier
  Product Features
Heavy-duty aluminized-steel tubular heat exchanger Multi-speed ECM blower motor with continuous fan speed
Silicon Nitride igniter Fault code LED Output
Color-coded low-voltage terminals Two-stage gas valve
Two-Stage gas valve Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
  Product Specifications
Installation Type Ducted
Item Stocking Unit of Measure (UOM) EA
Pallet Qty 4
Country of Origin USA
US HTS Code 7322.90.0015
AFUE 80 %
Cooling Capacity - (Nominal) 48000 Btu/H
Installation Configuration Upflow/Horizontal
Temperature Rise Range High Fire 35-65 °F
Max Overcurrent Protection 15 A
Min. Circuit Amps 12.45 A
Power Frequency 60 Hz
Power Phase 1 Ph
Power Voltage 115 V
Air Flow Rate (High) - Heating 1710 ft³/min
Dimensions - (Blower Diameter) 10 in
Dimensions - (Blower Width) 8 in
Dimensions - (Unit Depth) 28.875 in
Dimensions - (Unit Height) 34.5 in
Dimensions - (Unit Width) 17-1/2 in
Heat Exchanger Type Air Cooled
Motor Speed Type Multi Speed ECM
Weight - (Unit) 108 lb
Proposition 65 Label Yes
Dimensions - (Case Depth) 30.00 in
Dimensions - (Case Height) 35.50 in
Dimensions - (Case Width) 18.50 in
Weight - (Case) 109.000 lb
