Goodman

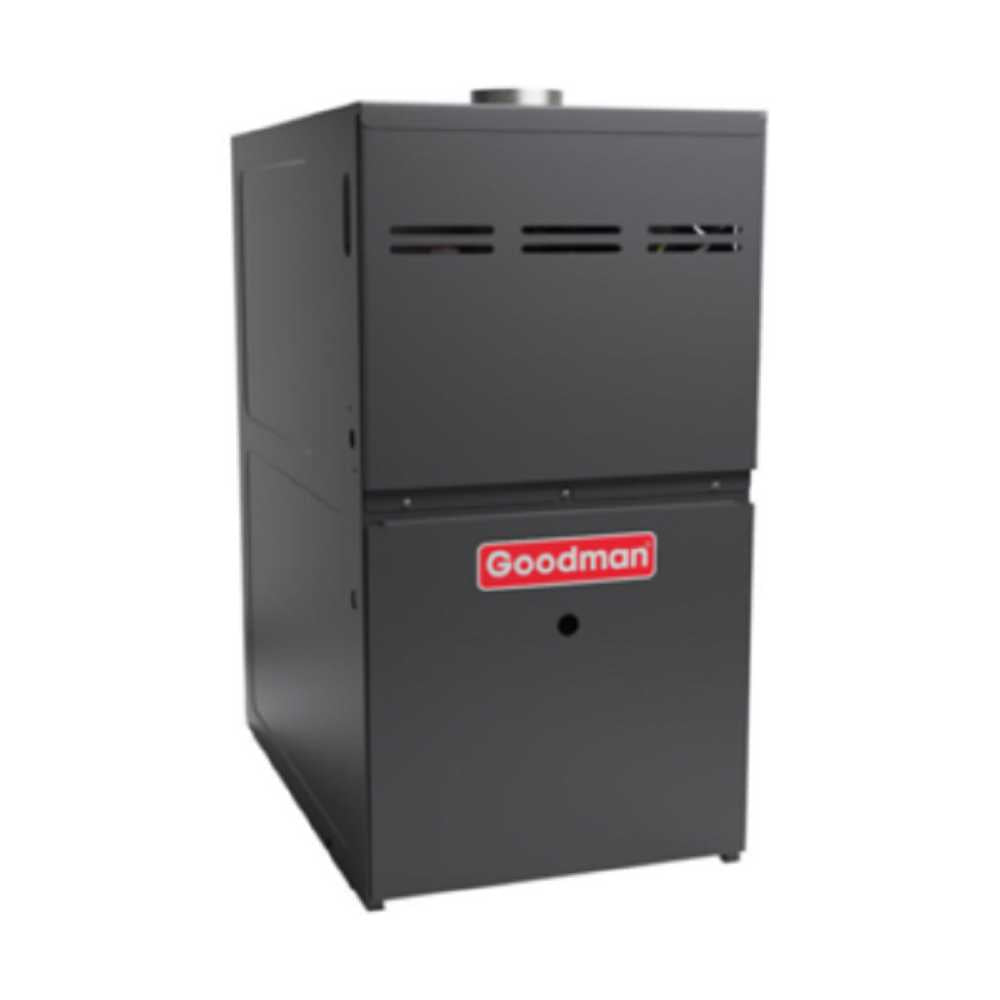

Goodman 96% AFUE Gas Furnace Multi Speed ECM, Two Stage -GM9C960804CN
Goodman 96% AFUE Gas Furnace Multi Speed ECM, Two Stage -GM9C960804CN
Couldn't load pickup availability
Goodman 96% AFUE Gas Furnace:
Product Benefits
| High reliability and quality | Energy Efficient and quiet circulation |
| Durable and long igniter life | Self-diagnostic control board with constant memory |
| Provisions for electronic air cleaner and humidifier | Operates on two-stage or single-stage thermostats |
| Quiet and Economical heating | Easy Connection for EAC and Humidifier |
Product Features
| Heavy-duty aluminized-steel tubular heat exchanger | Multi-speed ECM blower motor with continuous fan speed |
| Silicon Nitride igniter | Fault code LED Output |
| Color-coded low-voltage terminals | Two-stage gas valve |
| Two-Stage gas valve | Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers |
Product Specifications
| Installation Type | Ducted |
| Min Advertised Price | 1,963$ |
| Item Stocking Unit of Measure (UOM) | EA |
| Pallet Qty | 4 |
| Country of Origin | USA |
| US HTS Code | 7322.90.0015 |
| Product Description - (PIM) | 96% multi spd ecm uf fur |
| AFUE | 96 % |
| Cooling Capacity - (Nominal) | 48000 Btu/H |
| Installation Configuration | Upflow/Horizontal |
| Temperature Rise Range High Fire | 25-55 °F |
| Temperature Rise Range Low Fire | 25-55 °F |
| Max Overcurrent Protection | 15 A |
| Min. Circuit Amps | 11.3 A |
| Power Frequency | 60 Hz |
| Power Phase | 1 Ph |
| Power Voltage | 115 V |
| Air Flow Rate (High) - Heating | 1784 ft³/min |
| Air Flow Rate (Low) - Heating | 1234 ft³/min |
| Dimensions - (Blower Diameter) | 11 in |
| Dimensions - (Blower Width) | 10 in |
| Dimensions - (Unit Depth) | 28 in |
| Dimensions - (Unit Height) | 33-3/8 in |
| Dimensions - (Unit Width) | 21 in |
| Heat Exchanger Type | Air Cooled |
| Motor Speed Type | Multi Speed ECM |
| Weight - (Unit) | 123 lb |
| Proposition 65 Label | Yes |
| Dimensions - (Case Depth) | 30.00 in |
| Dimensions - (Case Height) | 38.50 in |
| Dimensions - (Case Width) | 22.00 in |
| Weight - (Case) | 135.000 lb |
If you're in the market for a new gas furnace, then the Goodman 96% AFUE Gas Furnace Multi Speed ECM, Two Stage -GM9C960804CN is definitely worth considering. This furnace is designed to be highly efficient, with an AFUE rating of 96%. This means that 96% of the fuel used by the furnace is converted into heat, which can save you a significant amount of money on your energy bills. Additionally, the multi-speed ECM and two-stage design of this furnace ensure that it operates at maximum efficiency, regardless of the temperature outside.
One of the main benefits of the Goodman 96% AFUE Gas Furnace is its ability to provide consistent heat throughout your home. This is due to the two-stage design of the furnace, which allows it to adjust its heat output based on the temperature in your home. This means that your home will always be warm and comfortable, regardless of the weather outside.
In addition to its high levels of efficiency and consistent heating, the Goodman 96% AFUE Gas Furnace Multi Speed ECM, Two Stage -GM9C960804CN is also incredibly reliable. It is built to last, with high-quality components that are designed to withstand the rigors of everyday use. This means that you can count on your furnace to provide consistent heating for years to come.
Overall, if you're looking for an efficient, reliable gas furnace that will keep your home warm and comfortable during the cold winter months, the Goodman 96% AFUE Gas Furnace Multi Speed ECM, Two Stage -GM9C960804CN is definitely worth considering. Its high AFUE rating, two-stage design, and multi-speed ECM make it one of the best options on the market today.
