Goodman Split Air Conditioner 15.2 SEER2 Single Stage -GSXH503610

Goodman Split Air Conditioner 15.2 SEER2 Single Stage -GSXH503610

$2,547.00 USD
$2,547.00 USD
Sale Sold out
Shipping calculated at checkout.

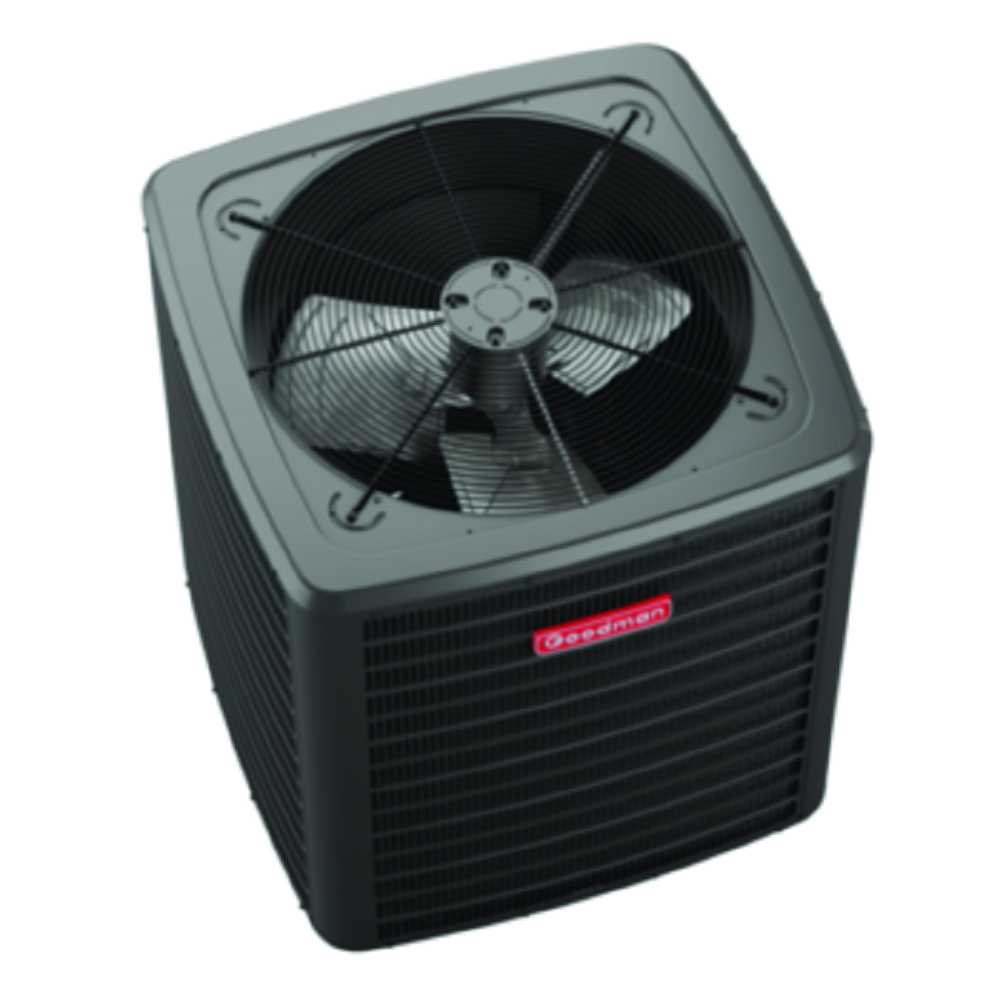

Goodman Split Air Conditioner 15.2 SEER2, Single Stage -GSXH503610



Product Benefits Meets new 2023 M1 test standards   Product Features

High-efficiency scroll compressor
Service valves with sweat connections and easy-to-access gauge ports
Copper tube/enhanced aluminum fin coil -5mm diameter on 1.5-3.0T Contactor with lug connection
Fully charged for 15’ of tubing length Ground lug connection
Factory-installed filter drier AHRI Certified, ETL Listed

  Product Specifications

Installation Type Ducted
Item Stocking Unit of Measure (UOM) EA
Pallet Qty 1
Country of Origin USA
US HTS Code 8415.90.8065
Product Description - (PIM) 15 seer ac, 3 ton
Compressor LRA 87.4 A
Compressor RLA 14.1 A
Max Overcurrent Protection 30 A
Max Voltage 253 V
Min. Circuit Amps 18.6 A
Min. Voltage 197 V
Outdoor Fan FLA 0.95 A
Power Frequency 60 Hz
Power Phase 1 Ph
Power Voltage 208/230 V
Compressor Stages Single Stage
Compressor Type Scroll
Energy Source Electric
Expansion Device TXV
Motor Speed Type PSC
Condenser Fan Horsepower 1/6 metric hp
Tonnage 3
Factory Std. Refrigerant Charge 102 oz
Refrigerant Type R-410A
Valve Connection Type Front-Seated
Proposition 65 Label Yes
Dimensions - (Case Depth) 37.00 in
Dimensions - (Case Height) 42.00 in
Dimensions - (Case Width) 37.00 in
Weight - (Case) 241.090 lb
