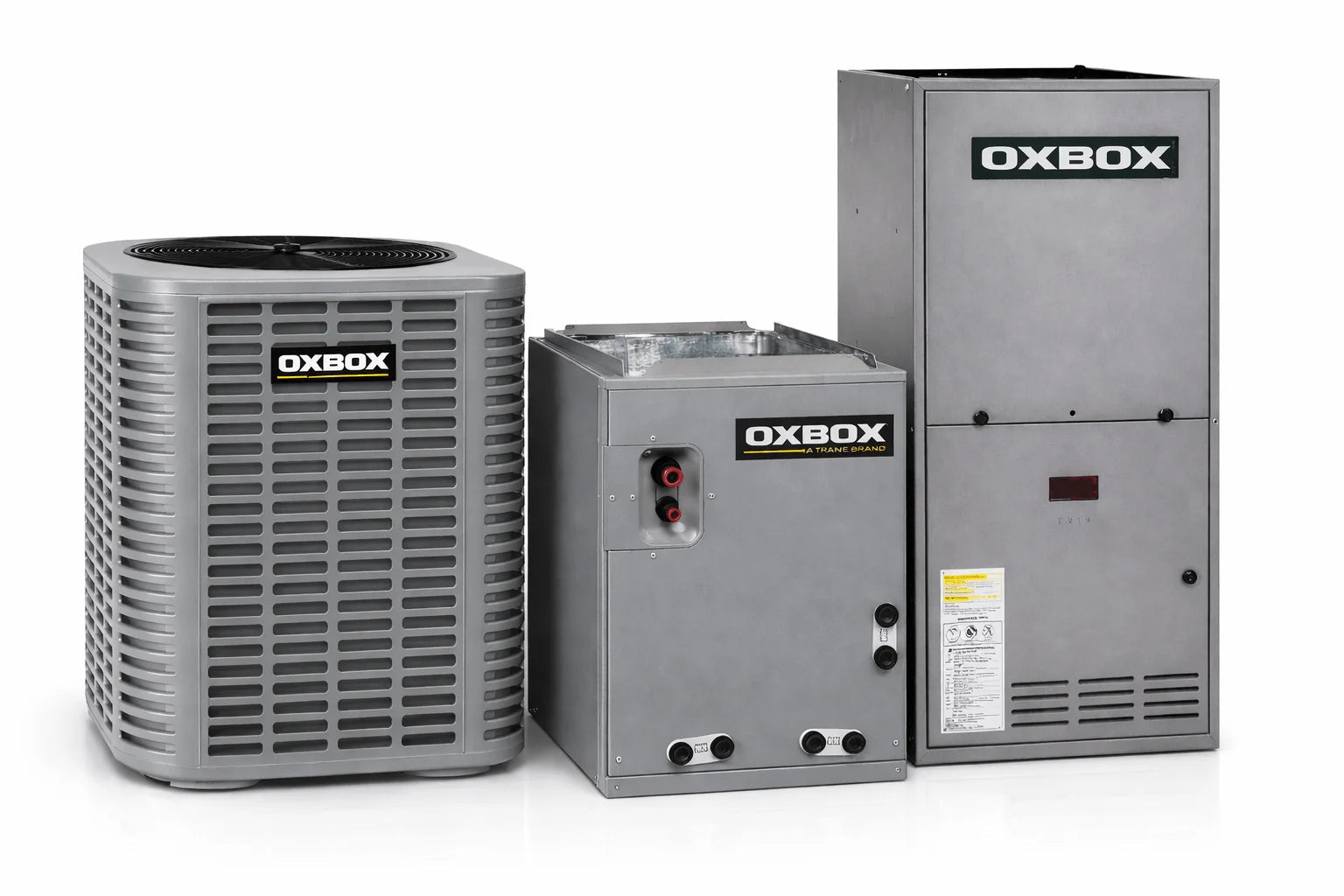

OXBOX BY TRANE 3.5 Ton 13.4 SEER2 R454B Air Conditioning System with C-Cabinet Cased Coil & 100K BTU 80% AFUE Gas Furnace – J5AC3042A1000A, J5MXCC009AC6HCA, J801V100CM5SE

• J5AC3042A1000A outdoor air conditioner provides 3.5-ton cooling capacity, 13.4 SEER2 efficiency, and R454B refrigerant operation.

• J5MXCC009AC6HCA evaporator coil features a C-cabinet cased design and supports 3.0–5.0 ton systems for proper airflow.

• J801V100CM5SE gas furnace delivers 100,000 BTU output with single-stage 80% AFUE heating performance.

• C-cabinet configuration ensures proper fit and compatibility within matched system layouts.

• Matched Oxbox system design ensures component compatibility, airflow balance, and dependable long-term performance.

The Oxbox J5AC3042A1000A air conditioning system is engineered to deliver dependable cooling performance combined with reliable gas heating for residential applications. The system features a 3.5-ton straight-cool outdoor air conditioner rated at 13.4 SEER2, operating with R454B refrigerant to meet current efficiency standards while providing consistent cooling capacity.

Cooling airflow and heat transfer are supported by the J5MXCC009AC6HCA C-cabinet cased evaporator coil, designed for 3.0–5.0 ton applications. This coil helps maintain proper airflow balance and efficient heat exchange when paired with the outdoor condenser, supporting stable and reliable system performance.

Heating is provided by the J801V100CM5SE gas furnace, delivering 100,000 BTU of heating capacity with single-stage operation and 80% AFUE efficiency. Housed in a C cabinet, the furnace offers dependable residential heating and straightforward installation. Together, these Oxbox components form a matched system designed for simplified installation and long-term comfort.

J5AC3042A1000A

Submittals –Submittals_J5AC3042A1000AA

Energy Guide –J5AC3042A1000AA

Sell Sheet –SellSheet_English_AirConditioner_R-454B

Installation Manual –InstallationManual_English_J5AC3_13.4SEER2

J5MXCC009AC6HCA

Submittals –Submittal_J5MXC-SUB-1A (2)

Sell Sheet –SellSheet_English_IndoorCoils_R-454B (2)

Installation Manual –InstallationManual_English_J5MXC (2)

J801V100CM5SE

Submittals –Submittal_J801V

Energy Guide –Energy_Guides_J801V100CM5S

Sell Sheet –SellSheet_Furnace_80_96_percent

Installation Manual –InstallationManual_J801V
