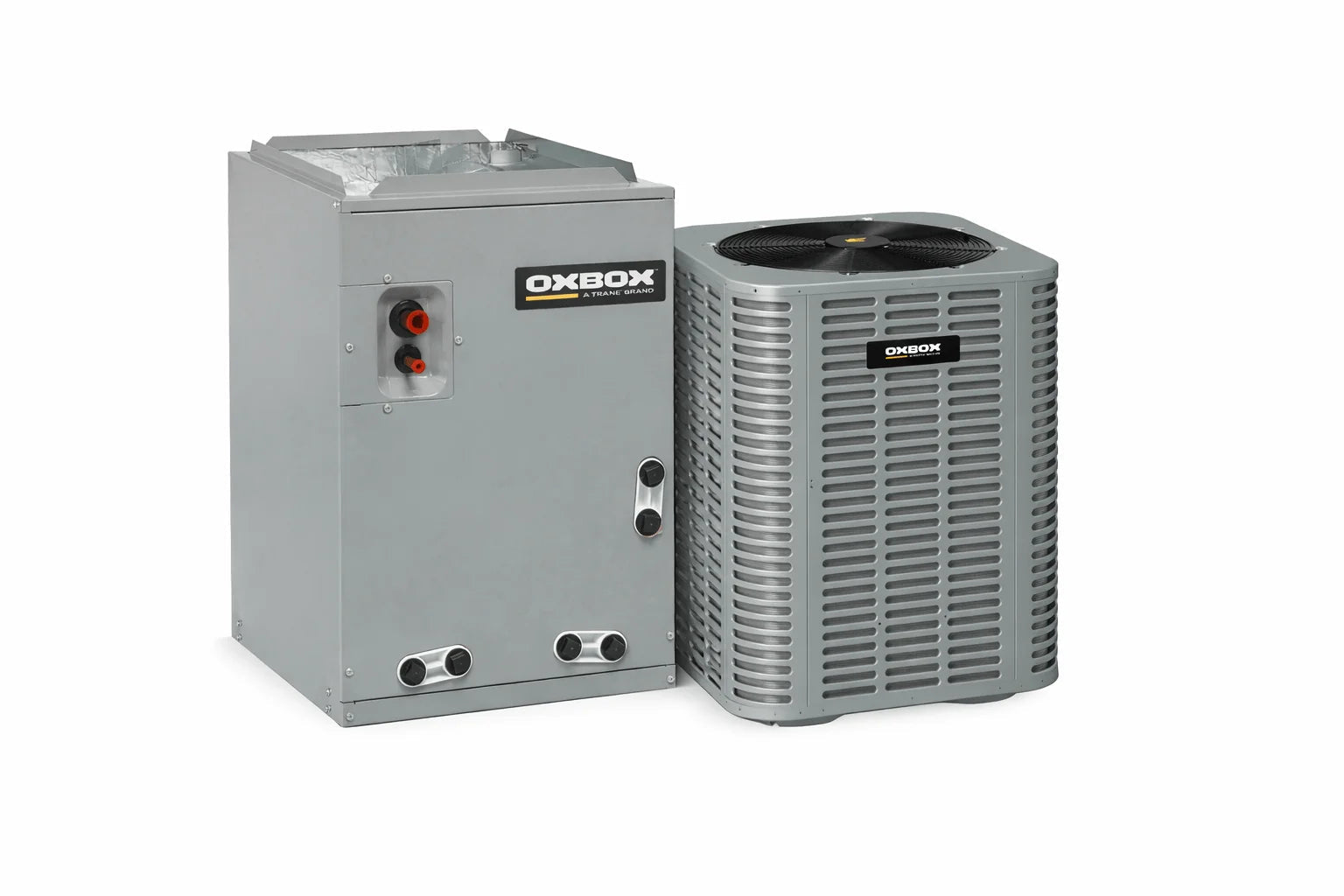

OXBOX BY TRANE 3.5 Ton 13.4 SEER2 Split-System Air Conditioner with C-Cabinet Cased Evaporator Coil – J5AC3042A1000AA, J5MXCC009AC6HCA

Split-System Air Conditioner – Outdoor AC paired with indoor C-cabinet cased evaporator coil

3.5 Ton Cooling Capacity – J5AC3042A1000AA rated at 13.4 SEER2 using R454B refrigerant

C-Cabinet Cased Coil – J5MXCC009AC6HCA supports 3.0–5.0 ton airflow for proper system matching

Balanced Airflow Design – Engineered for efficient heat transfer and consistent comfort

Matched System Performance – Designed for reliable residential installation and operation.

This Oxbox system is a split-system air conditioner designed to deliver dependable and efficient cooling for residential applications. The split configuration pairs an outdoor condensing unit with an indoor cased evaporator coil, providing quiet operation, balanced airflow, and flexible installation.

The system includes the J5AC3042A1000AA outdoor air conditioner, rated at 3.5 tons with 13.4 SEER2 efficiency and engineered for R454B refrigerant, offering reliable cooling performance. Cooling is supported by the J5MXCC009AC6HCA cased evaporator coil, a C-cabinet design compatible with 3.0–5.0 ton applications, ensuring proper airflow and efficient heat transfer when matched with compatible indoor equipment.

When properly installed, this matched system delivers consistent cooling performance and long-term reliability.

J5AC3042A1000AA

Submittals –Submittals_J5AC3042A1000AA (4)

Energy Guide –J5AC3042A1000AA (4)

Sell Sheet –SellSheet_English_AirConditioner_R-454B (7)

Installation Manual –InstallationManual_English_J5AC3_13.4SEER2 (7)

J5MXCC009AC6HCA

Submittals –Submittal_J5MXC-SUB-1A (12)

Sell Sheet –SellSheet_English_IndoorCoils_R-454B (14)

Installation Manual –InstallationManual_English_J5MXC (12)
