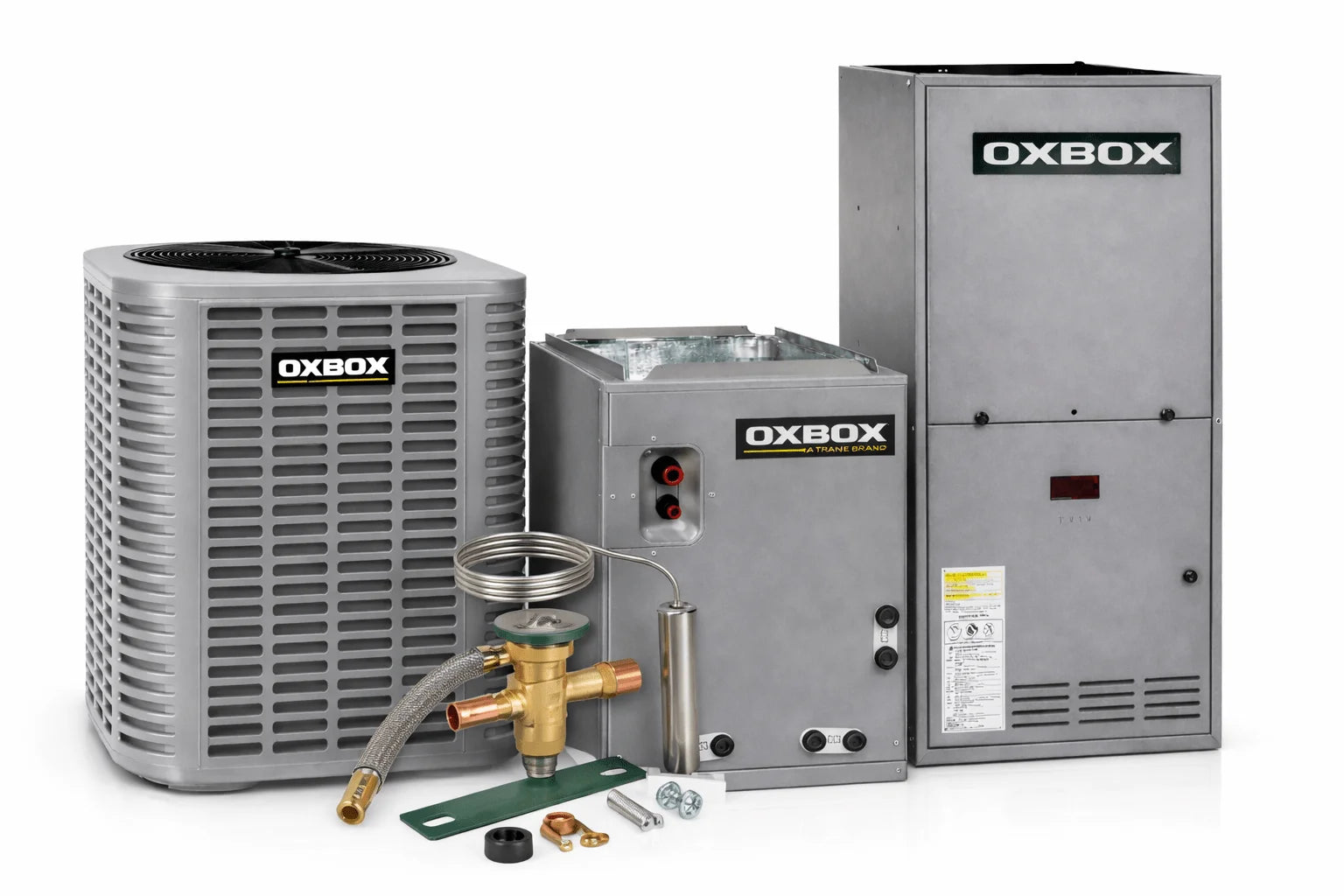

OXBOX BY TRANE 3 Ton 13.4 SEER2 R454B Air Conditioning System with A-Cabinet Cased Coil, TXV Kit & 60K BTU 80% AFUE Gas Furnace – J5AC3036A1000AA, J5MXCA003AC6HCA, J801V060AM3SE, 5AYTXVH3A1836A

J5AC3036A1000AA outdoor air conditioner provides 3-ton cooling capacity, 13.4 SEER2 efficiency, and R454B refrigerant operation.

J5MXCA003AC6HCA evaporator coil features an A-cabinet cased design and supports 1.5–3.0 ton systems for proper airflow.

J801V060AM3SE gas furnace delivers 60,000 BTU output with single-stage 80% AFUE heating performance.

5AYTXVH3A1836A TXV kit ensures accurate refrigerant control for 1.5–3.0 ton R454B systems, improving efficiency and stability.

Matched Oxbox system design ensures compatibility, airflow balance, and dependable long-term performance.

The Oxbox J5AC3036A1000AA air conditioning system is engineered to deliver dependable cooling performance combined with reliable gas heating for residential applications. The system features a 3-ton straight-cool outdoor air conditioner rated at 13.4 SEER2, operating with R454B refrigerant to meet current efficiency standards while providing consistent cooling capacity.

Cooling airflow and heat transfer are supported by the J5MXCA003AC6HCA A-cabinet cased evaporator coil, designed for 1.5–3.0 ton applications. This coil helps maintain proper airflow balance and efficient heat exchange when paired with the outdoor unit, supporting stable and reliable system performance.

Heating is provided by the J801V060AM3SE gas furnace, delivering 60,000 BTU of heating capacity with single-stage operation and 80% AFUE efficiency. Housed in an A cabinet, this furnace offers dependable heating performance and flexible installation for residential systems. The system also includes the 5AYTXVH3A1836A TXV kit, designed for 1.5–3.0 ton R454B coils and air handlers, ensuring precise refrigerant metering and improved system efficiency. Together, these Oxbox components create a matched system designed for simplified installation and long-term residential comfort.

J5AC3036A1000AA

Submittals –Submittals_J5AC3036A1000AA (6)

Energy Guide –J5AC3036A1000AA

Sell Sheet –SellSheet_English_AirConditioner_R-454B (1)

Installation Manual –InstallationManual_English_J5AC3_13.4SEER2

J5MXCA003AC6HCA

Submittals –Submittal_J5MXC-SUB-1A

Sell Sheet –SellSheet_English_IndoorCoils_R-45

Installation Manual –InstallationManual_English_J5M4BXC

J801V060AM3SE

Submittals –Submittal_J801V (1)

Energy Guide –Energy_Guides_J801V060AM3S (1)

Sell Sheet –SellSheet_Furnace_80_96_percent (1)

Installation Manual –InstallationManual_J801V (1)
