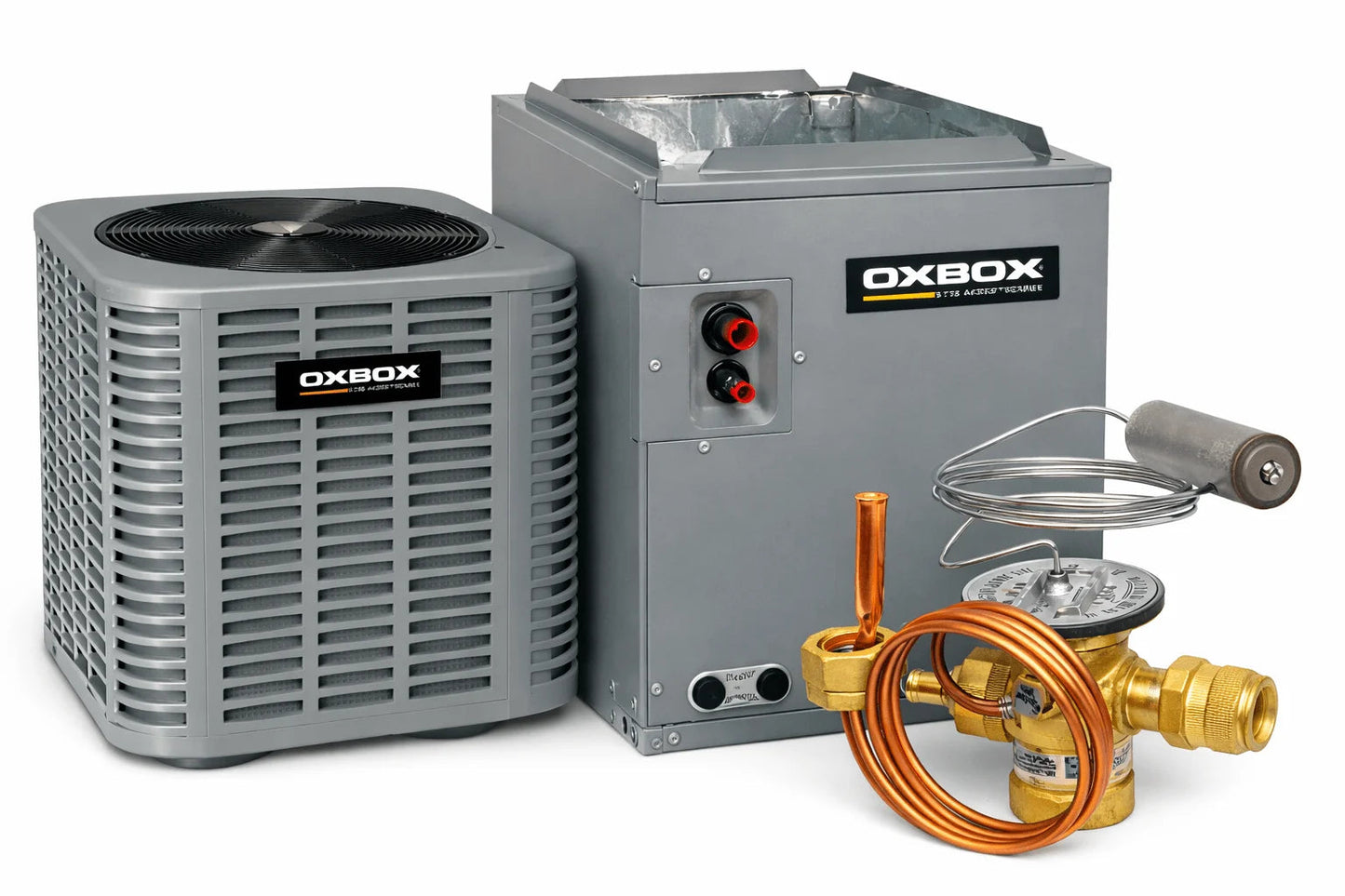

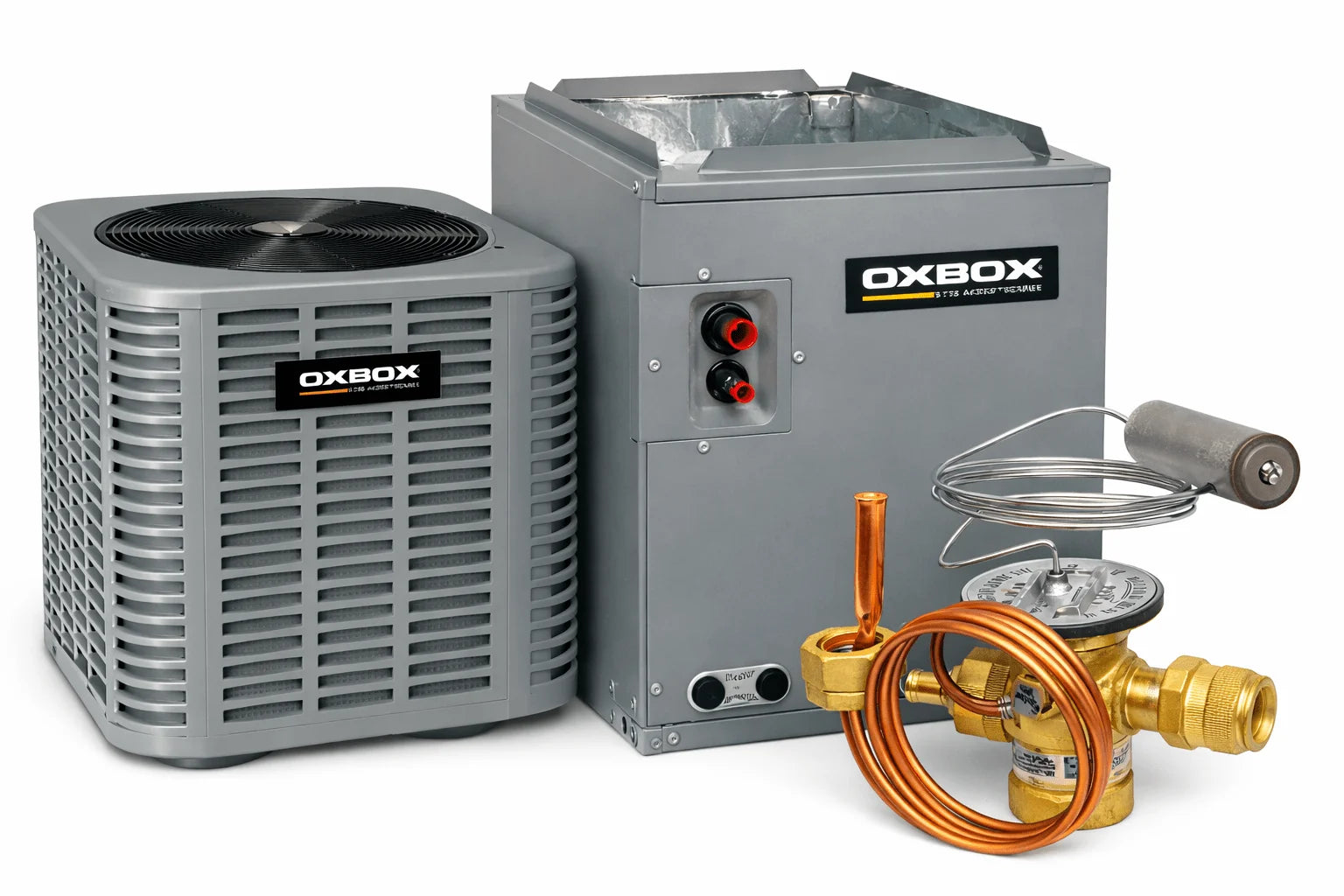

OXBOX BY TRANE 3 Ton 13.4 SEER2 R454B Air Conditioning System with A-Cabinet Cased Coil & TXV Kit – J5AC3036A1000AA, J5GXCA003AC6HUA, 5AYTXVH3A1836A

• J5AC3036A1000AA outdoor air conditioner provides 3-ton cooling capacity, 13.4 SEER2 efficiency, and R454B refrigerant operation.

• J5GXCA003AC6HUA evaporator coil features an A-cabinet cased design and supports 1.5–3.0 ton systems for proper airflow.

• 5AYTXVH3A1836A TXV kit ensures accurate refrigerant control for 1.5–3.0 ton R454B systems, improving efficiency and performance.

• Straight-cool system configuration suitable for applications using separate electric or gas heating.

• Matched Oxbox system design ensures component compatibility, airflow balance, and dependable long-term performance.

The Oxbox J5AC3036A1000AA air conditioning system is engineered to deliver dependable cooling performance for residential applications requiring efficient airflow and reliable operation. The system features a 3-ton straight-cool outdoor air conditioner rated at 13.4 SEER2, operating on R454B refrigerant to meet current efficiency standards while providing consistent cooling capacity.

Cooling airflow and heat transfer are supported by the J5GXCA003AC6HUA A-cabinet cased evaporator coil, designed for 1.5–3.0 ton applications. This coil ensures proper airflow balance and efficient heat exchange when paired with the outdoor unit, supporting stable and reliable system performance.

The system also includes the 5AYTXVH3A1836A TXV kit, engineered for 1.5–3.0 ton R454B coils and air handlers, providing precise refrigerant metering to help improve efficiency, maintain proper superheat control, and enhance overall system operation. Together, these Oxbox components create a matched cooling system designed for straightforward installation and long-term residential comfort.

J5AC3036A1000AA

Submittals –Submittals_J5AC3036A1000AA

Energy Guide –J5AC3036A1000AA

Sell Sheet –SellSheet_English_AirConditioner_R-454B

Installation Manual –InstallationManual_English_J5AC3_13.4SEER2

J5GXCA003AC6HUA

Submittals –Submittal_J5GXC-SUB-1A

Sell Sheet –SellSheet_English_IndoorCoils_R-454B

Installation Manual –InstallationManual_English_J5GXC
