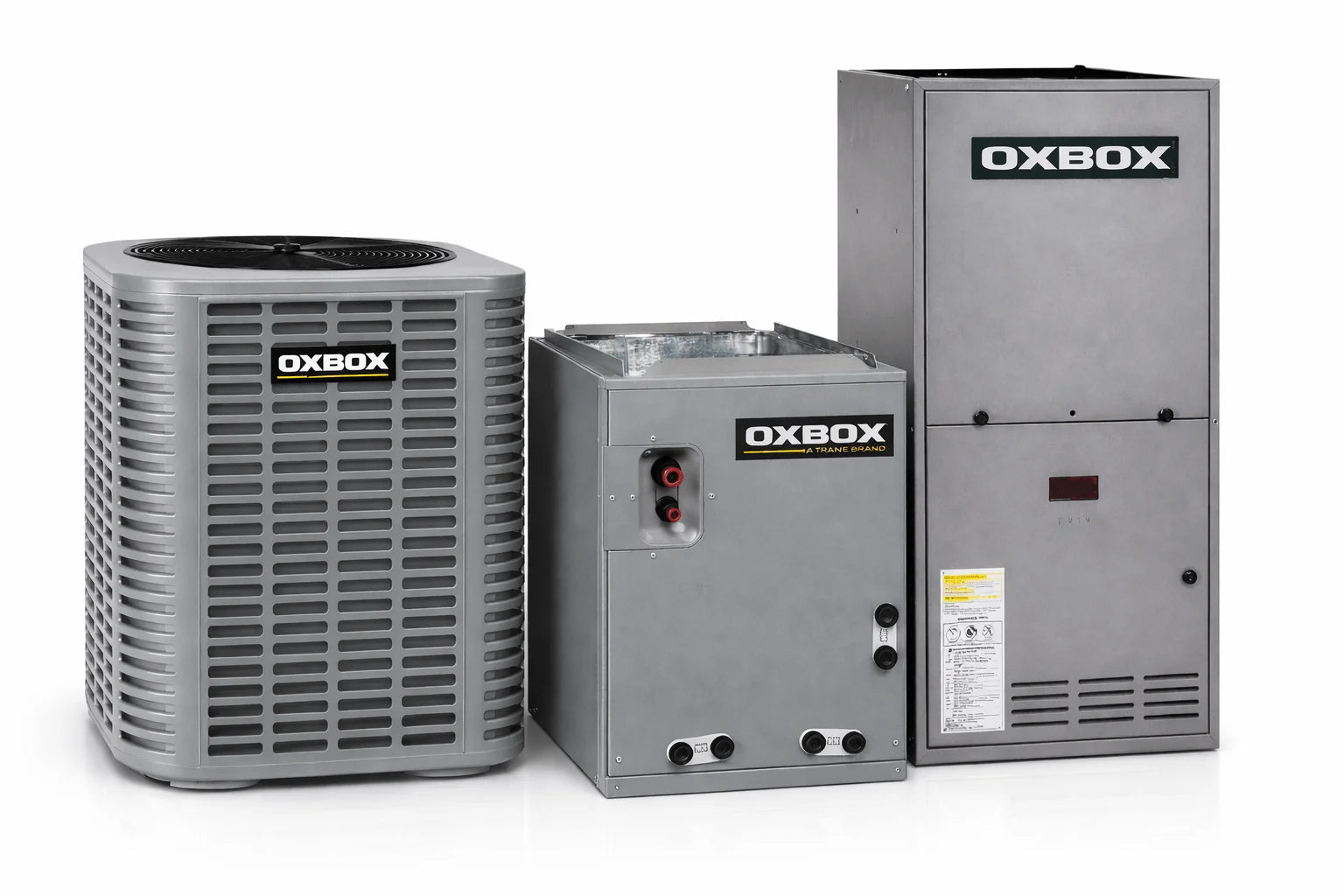

OXBOX BY TRANE 3 Ton 13.4 SEER2 R454B Air Conditioning System with D-Cabinet Cased Coil & 120K BTU 80% AFUE Gas Furnace – J5AC3036A1000A, J5MXCD010AC6HCA, J801V120DM5SE

J5AC3036A1000A outdoor air conditioner provides 3-ton cooling capacity, 13.4 SEER2 efficiency, and R454B refrigerant operation.

J5MXCD010AC6HCA evaporator coil features a D-cabinet cased design and supports 3.5–5.0 ton systems for proper airflow.

J801V120DM5SE gas furnace delivers 120,000 BTU output with single-stage 80% AFUE heating performance.

D-cabinet furnace configuration ensures proper fit and compatibility within matched system layouts.

Matched Oxbox system design ensures component compatibility, airflow balance, and dependable long-term performance.

The Oxbox J5AC3036A1000A air conditioning system is engineered to deliver dependable cooling performance combined with reliable gas heating for residential applications requiring higher heating capacity. The system features a 3-ton straight-cool outdoor air conditioner rated at 13.4 SEER2, operating with R454B refrigerant to meet modern efficiency standards while providing consistent cooling performance.

Cooling airflow and heat transfer are supported by the J5MXCD010AC6HCA D-cabinet cased evaporator coil, designed for 3.5–5.0 ton applications. This coil helps maintain proper airflow balance and efficient heat exchange when paired with the outdoor unit, supporting stable and reliable system operation.

Heating is provided by the J801V120DM5SE gas furnace, delivering 120,000 BTU of heating capacity with single-stage operation and 80% AFUE efficiency. Housed in a D cabinet, the furnace offers dependable heating performance and flexible installation for residential systems. Together, these Oxbox components form a matched system engineered for simplified installation and long-term residential comfort.

J5AC3036A1000A

Submittals –Submittals_J5AC3036A1000AA (1)

Energy Guide –J5AC3036A1000AA (1)

J5MXCD010AC6HCA

Submittals –Submittal_J5MXC-SUB-1A (1)

Sell Sheet –SellSheet_English_IndoorCoils_R-454B (1)

Installation Manual –InstallationManual_English_J5MXC (1)

J801V120DM5SE

Submittals –Submittal_J801V

Energy Guide –Energy_Guides_J801V120DM5S

Sell Sheet –SellSheet_Furnace_80_96_percent (1)

Installation Manual –InstallationManual_J801V
