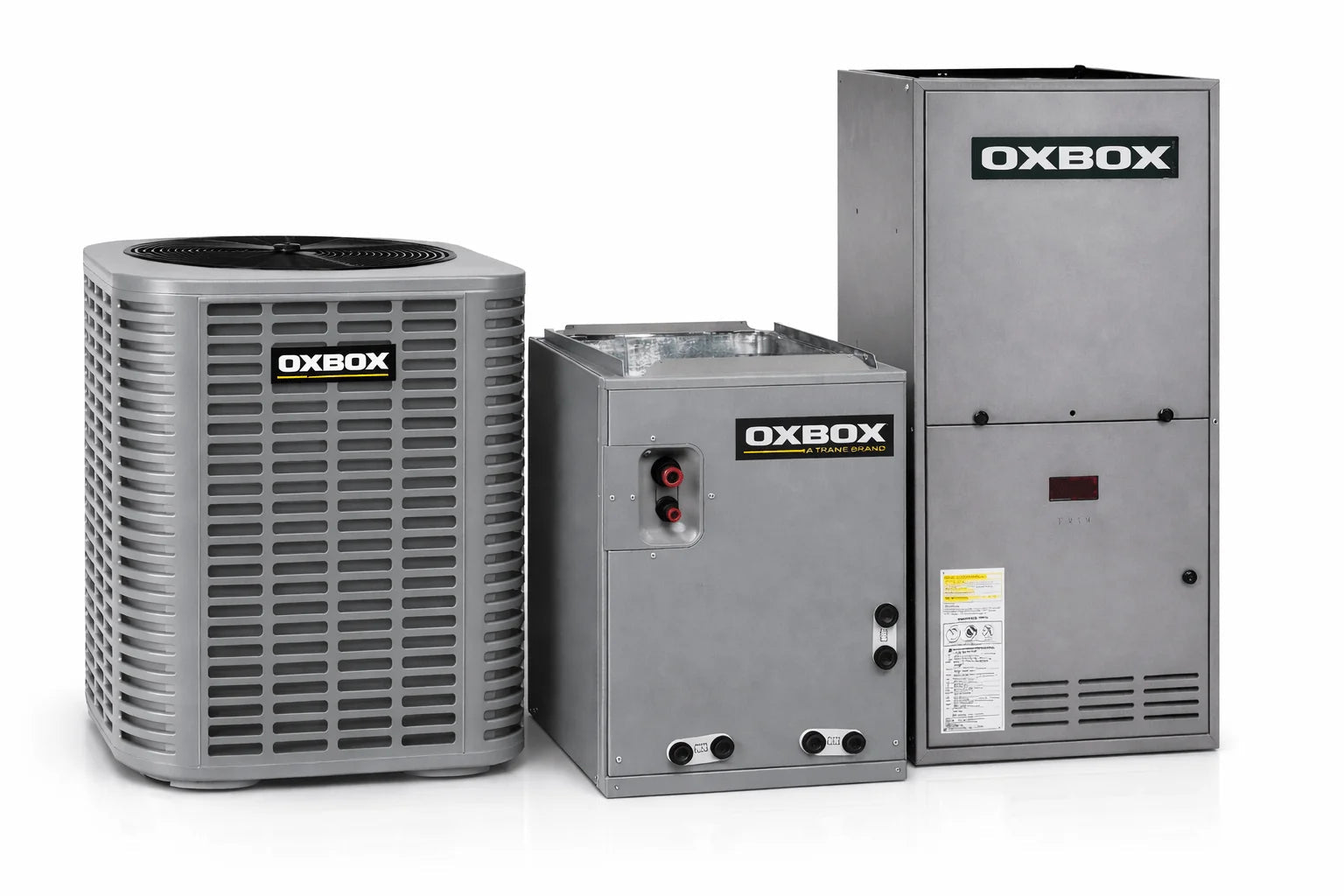

OXBOX BY TRANE 3 Ton 13.4 SEER2 R454B Split System Air Conditioner with B-Cab Cased Evaporator Coil & 80,000 BTU Gas Furnace – J5AC3036A1000AA, J5MXCB016AC6HCA, J801V080BM4SE

• Complete Split System HVAC Package: Includes J5AC3036A1000AA condenser, J5MXCB016AC6HCA B-cab cased coil, and J801V080BM4SE gas furnace
• • 3 Ton Cooling Performance: 13.4 SEER2 air conditioner engineered for reliable R454B refrigerant operation
• • B-Cabinet Cased Evaporator Coil: Supports 1.5–3.5 ton airflow for efficient heat transfer and balanced system performance
• • 80% AFUE Single-Stage Gas Furnace: J801V080BM4SE delivers 80,000 BTUH heating capacity with dependable operation
• • Installation-Ready Residential HVAC Solution: Durable matched components designed for long-term reliability and consistent indoor comfort.

This Oxbox split-system heating and cooling package is designed to deliver dependable cooling performance and reliable heating for residential HVAC applications. The system combines the J5AC3036A1000AA outdoor air conditioner, J5MXCB016AC6HCA B-cabinet cased evaporator coil, and J801V080BM4SE single-stage gas furnace, creating a properly matched HVAC solution engineered for balanced airflow, durability, and modern R454B refrigerant compatibility.

The outdoor condenser provides 3-ton cooling capacity with 13.4 SEER2 efficiency, helping maintain consistent indoor temperatures while supporting efficient system operation. The B-cabinet cased evaporator coil supports 1.5–3.5 ton airflow applications, improving heat transfer and overall system balance. Heating is delivered by the J801V080BM4SE furnace, featuring 80% AFUE efficiency, single-stage operation, and 80,000 BTUH heating capacity, offering steady and dependable heating performance.

Designed as a split-system configuration, this setup separates indoor and outdoor components for quieter operation, flexible installation, and dependable year-round HVAC performance.

J5AC3036A1000AA

Submittals –Submittals_J5AC3036A1000AA (3)

Energy Guide –J5AC3036A1000AA (3)

Sell Sheet –J5AC3036A1000AA (3)

Installation Manual –InstallationManual_English_J5AC3_13.4SEER2 (4)

J5MXCB016AC6HCA

Submittals –Submittal_J5MXC-SUB-1A (6)

Sell Sheet –SellSheet_English_IndoorCoils_R-454B (6)

Installation Manual –InstallationManual_English_J5MXC (6)

J801V080BM4SE

Submittals –Submittal_J801V (2)

Energy Guide –Energy_Guides_J801V080BM4S

Sell Sheet –SellSheet_Furnace_80_96_percent (5)

Installation Manual –InstallationManual_J801V (3)
