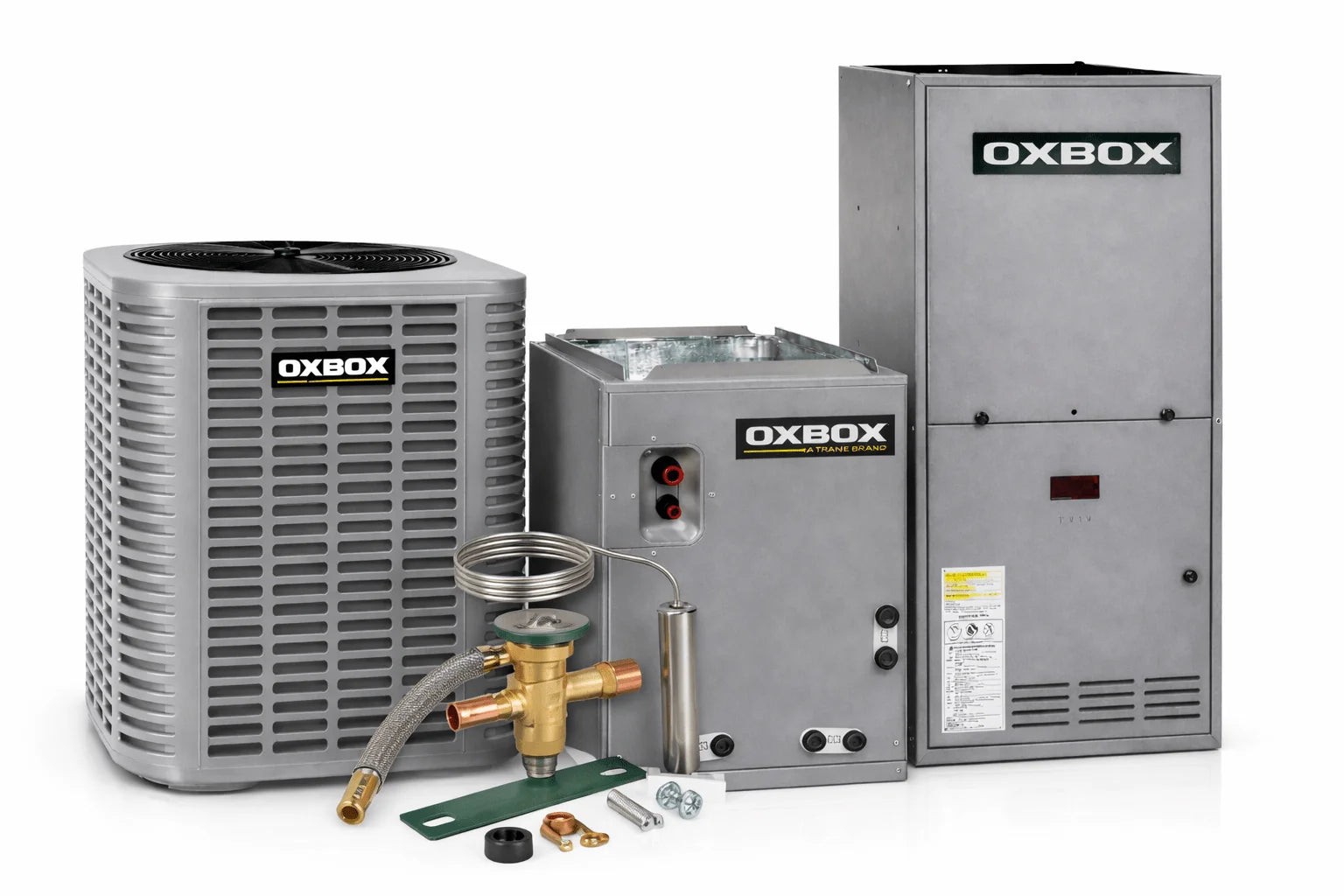

OXBOX BY TRANE 3 Ton 13.4 SEER2 R454B Split System Air Conditioner with C-Cab Cased Coil, TXV Kit & 100,000 BTU Gas Furnace – J5AC3036A1000AA, J5MXCC017AC6HCA, J801V100CM5SE, 5AYTXVH3A1836A

 Complete Split System Package: Includes J5AC3036A1000AA condenser, J5MXCC017AC6HCA cased coil, 5AYTXVH3A1836A TXV kit, and J801V100CM5SE gas furnace

• 3 Ton Cooling Performance: 13.4 SEER2 rated air conditioner designed for reliable R454B refrigerant operation

• C-Cabinet Cased Evaporator Coil: Supports 1.5–3.5 ton applications for efficient heat transfer and balanced airflow

• 80% AFUE Single-Stage Furnace: J801V100CM5SE delivers up to 100,000 BTUH heating capacity for dependable residential comfort

• TXV Kit Included: Helps optimize refrigerant metering for improved efficiency, performance, and system reliability.

This Oxbox split-system heating and cooling package is engineered to provide dependable residential comfort with balanced airflow and durable performance. The system combines the J5AC3036A1000AA outdoor air conditioner, J5MXCC017AC6HCA C-cabinet cased evaporator coil, 5AYTXVH3A1836A TXV kit, and J801V100CM5SE single-stage gas furnace, creating a properly matched configuration designed for efficient operation with R454B refrigerant.

The outdoor condenser delivers 3-ton cooling capacity with 13.4 SEER2 efficiency, supporting reliable temperature control during warm seasons. The C-cabinet cased evaporator coil enhances heat transfer and airflow performance, while the included TXV kit helps regulate refrigerant flow for improved system efficiency. Heating performance is provided by the J801V100CM5SE furnace, featuring 80% AFUE efficiency and 100,000 BTUH heating capacity for steady, dependable warmth.

Designed as a split-system configuration, this setup separates indoor and outdoor equipment to allow quieter operation, flexible installation, and consistent year-round performance.

J5AC3036A1000AA

Submittals –Submittals_J5AC3036A1000AA (1)

Energy Guide –J5AC3036A1000AA (1)

Sell Sheet –SellSheet_English_AirConditioner_R-454B (2)

Installation Manual –InstallationManual_English_J5AC3_13.4SEER2 (2)

J5MXCC017AC6HCA

Submittals –Submittal_J5MXC-SUB-1A (4)

Sell Sheet –SellSheet_English_IndoorCoils_R-454B (4)

Installation Manual –InstallationManual_English_J5MXC (4)

J801V100CM5SE

Submittals –Submittal_J801V (1)

Energy Guide –Energy_Guides_J801V100CM5S

Sell Sheet –SellSheet_Furnace_80_96_percent (3)

Installation Manual –InstallationManual_J801V (1)
