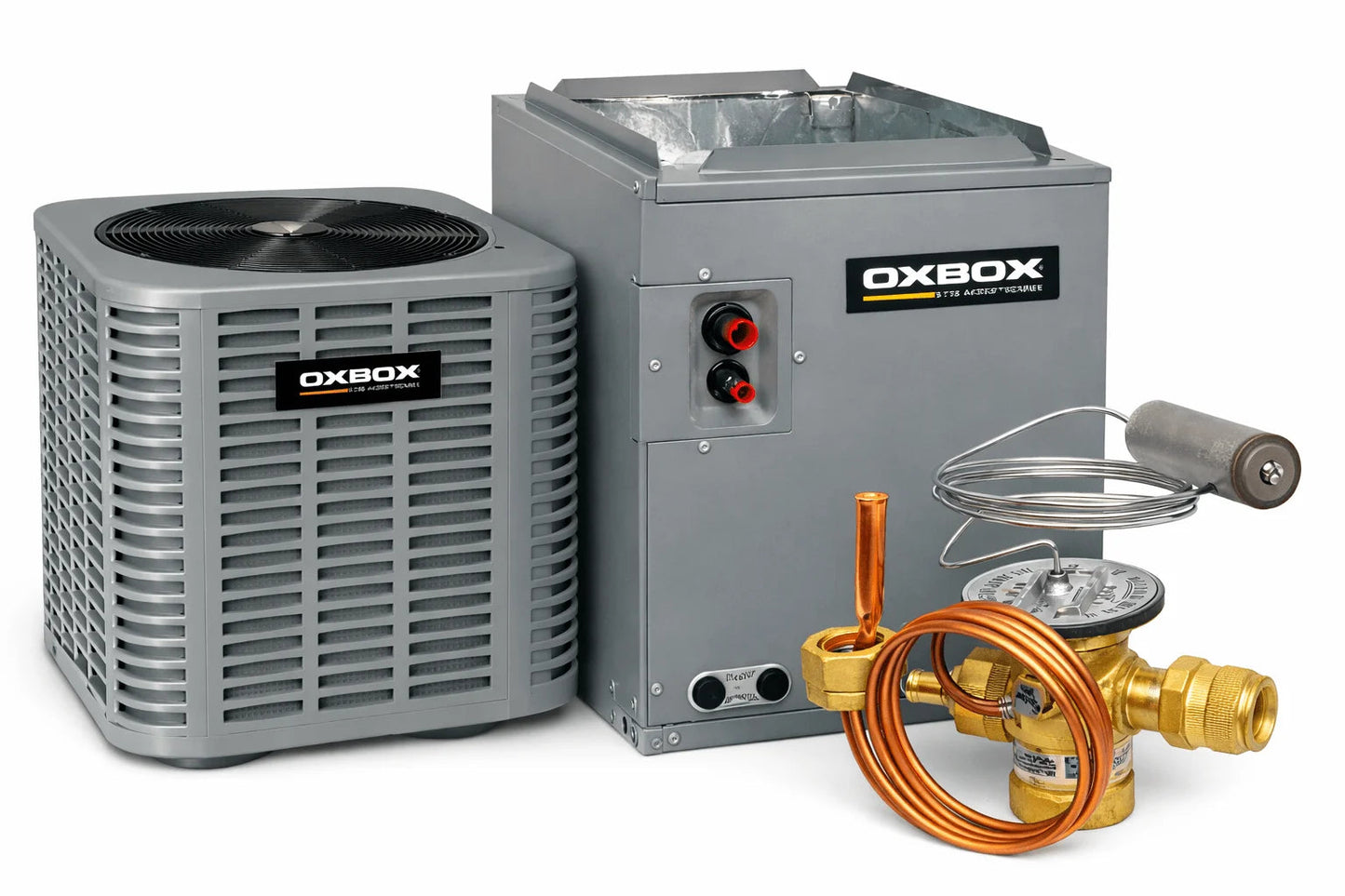

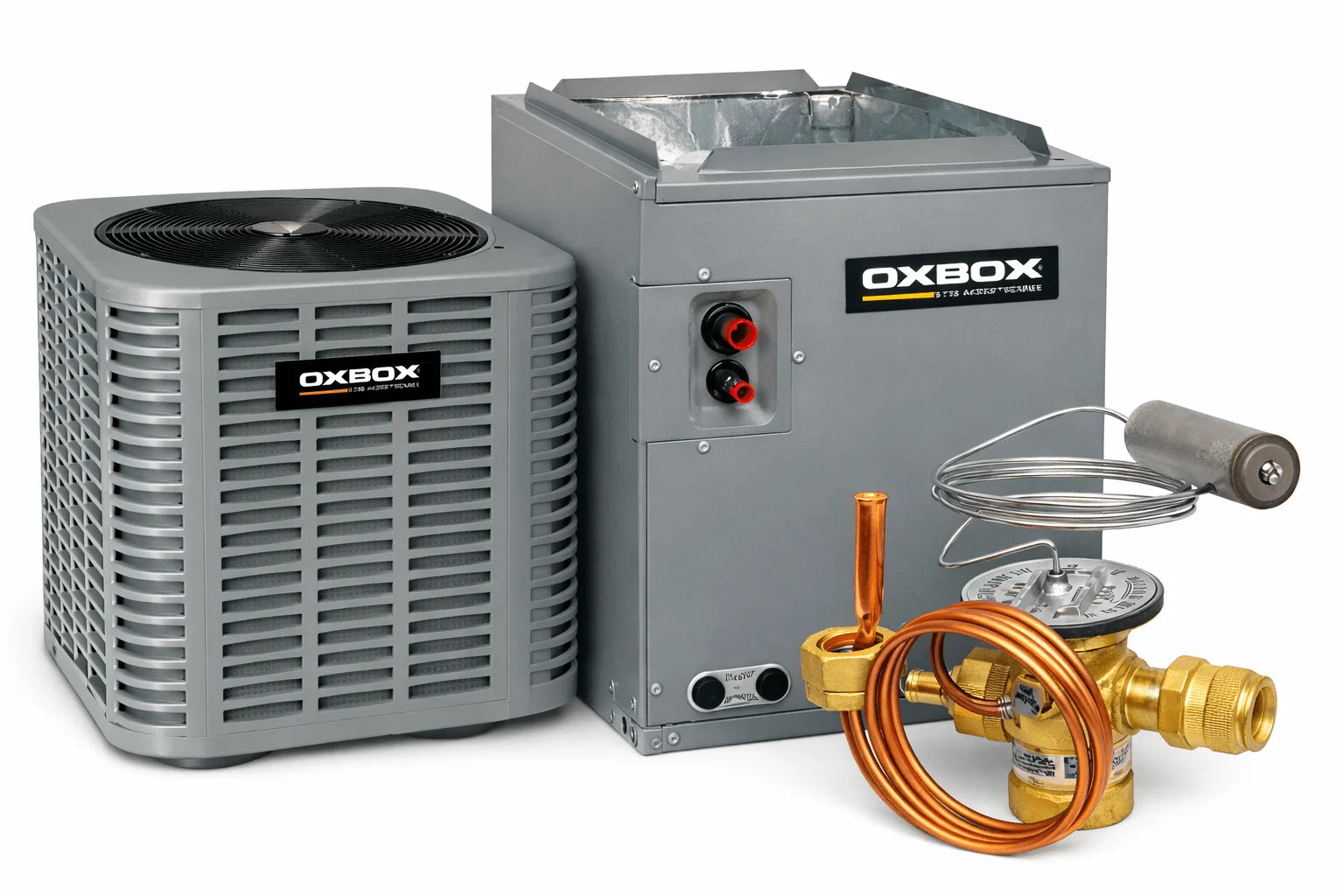

OXBOX BY TRANE 3 Ton 13.4 SEER2 Split-System Air Conditioner with B-Cabinet Coil and TXV Kit – J5AC3036A1000AA, J5MXCB004AC6HCA, 5AYTXVH3A1836A

• Split-System Air Conditioner Configuration – Outdoor AC paired with indoor cased coil and TXV kit

• 3 Ton Cooling Capacity – J5AC3036A1000AA rated at 13.4 SEER2 using R454B refrigerant

• B-Cabinet Cased Evaporator Coil – J5MXCB004AC6HCA supports 1.5–3.0 ton airflow

• TXV Kit Included – 5AYTXVH3A1836A helps optimize refrigerant flow and performance

• Matched System Design – Engineered for balanced airflow, efficient operation, and reliable residential comfort.

This Oxbox system is a split-system air conditioner designed to provide reliable and efficient cooling for residential applications. The split configuration pairs an outdoor condensing unit with an indoor cased evaporator coil, allowing for quiet performance, balanced airflow, and flexible installation.

The system includes the J5AC3036A1000AA outdoor air conditioner, rated at 3.0 tons with 13.4 SEER2 efficiency and engineered for R454B refrigerant, delivering dependable cooling performance. Cooling is supported by the J5MXCB004AC6HCA B-cabinet cased evaporator coil, compatible with 1.5–3.0 ton applications, helping ensure proper airflow and system matching.

The included 5AYTXVH3A1836A TXV kit provides accurate refrigerant metering to enhance efficiency and maintain consistent system operation when properly installed.

J5AC3036A1000AA

Submittals –Submittals_J5AC3036A1000AA (13)

Energy Guide –J5AC3036A1000AA (13)

Sell Sheet –SellSheet_English_AirConditioner_R-454B (21)

Installation Manual –InstallationManual_English_J5AC3_13.4SEER2 (21)

J5MXCB004AC6HCA

Submittals –Submittal_J5MXC-SUB-1A (18)

Sell Sheet –SellSheet_English_IndoorCoils_R-454B (20)

Installation Manual –InstallationManual_English_J5MXC (18)
