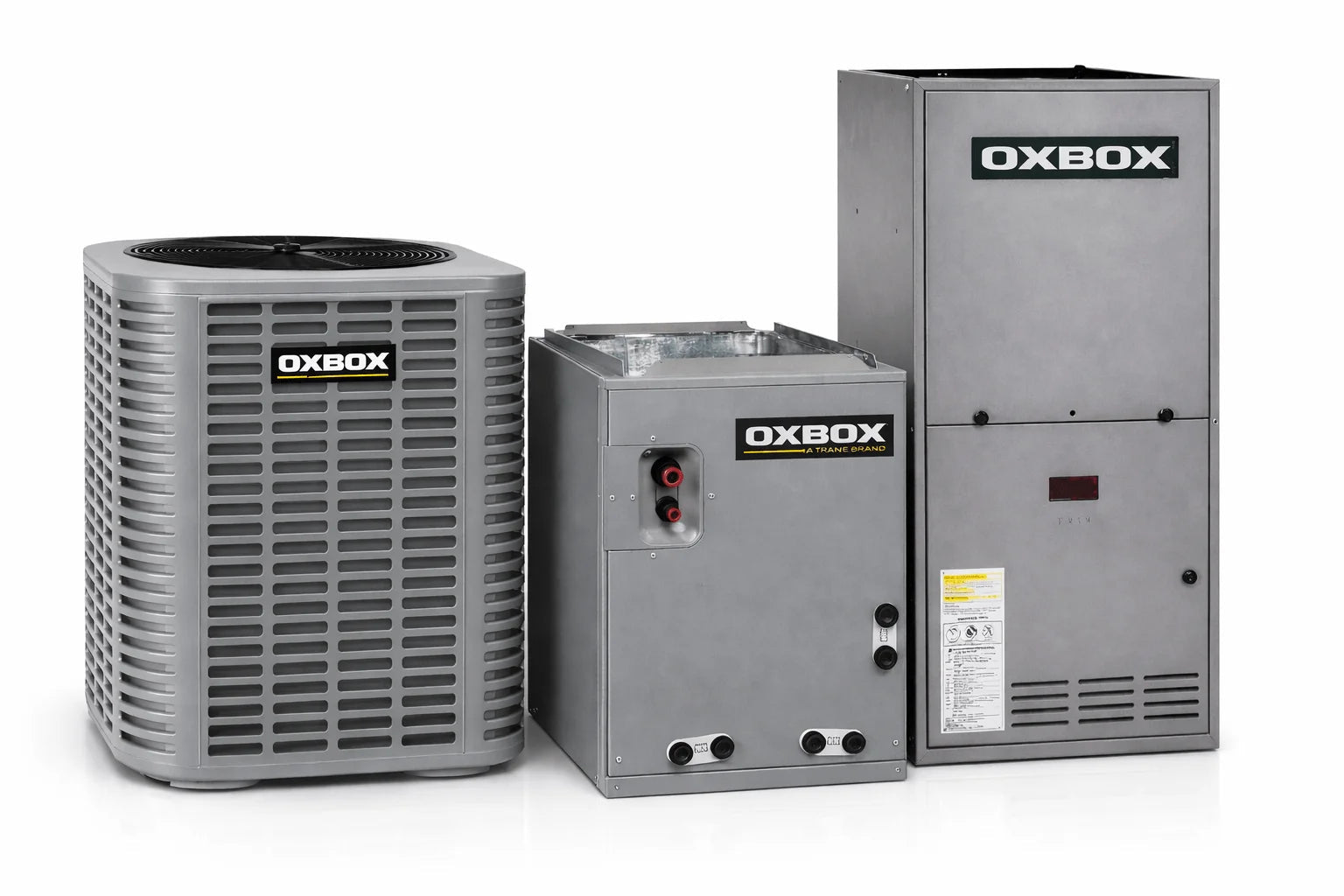

OXBOX BY TRANE 5 Ton 13.4 SEER2 R454B Split System Air Conditioner with D-Cab Cased Evaporator Coil & 120,000 BTU Gas Furnace – J5AC3060A1000AA, J5MXCD010AC6HCA, J801V120DM5SE

• • Complete Heating & Cooling Split System: Includes J5AC3060A1000AA condenser, J5MXCD010AC6HCA D-cab cased coil, and J801V120DM5SE gas furnace
• • 5 Ton Cooling Capacity: 13.4 SEER2 rated air conditioner engineered for dependable R454B refrigerant performance
• • D-Cabinet Cased Evaporator Coil: Supports 3.5–5.0 ton airflow for efficient heat transfer and balanced system operation
• • 80% AFUE Gas Furnace: J801V120DM5SE single-stage furnace delivers 120,000 BTUH heating capacity
• • Installation-Ready Configuration: Designed for reliable residential heating and cooling with durable construction and long-term performance.

This Oxbox split-system air conditioner and gas furnace package is designed to provide powerful cooling and dependable heating performance for residential HVAC applications. The system combines the J5AC3060A1000AA outdoor air conditioner, J5MXCD010AC6HCA D-cabinet cased evaporator coil, and J801V120DM5SE single-stage gas furnace, creating a matched comfort solution engineered for balanced airflow, durability, and modern R454B refrigerant compatibility.

The outdoor condenser delivers 5-ton cooling capacity with 13.4 SEER2 efficiency, supporting steady indoor comfort and reliable operation. The D-cabinet cased evaporator coil is designed for 3.5–5.0 ton airflow applications, helping improve heat transfer and system balance. Heating performance is provided by the J801V120DM5SE furnace, featuring single-stage operation, 80% AFUE efficiency, and up to 120,000 BTUH heating capacity, making it suitable for consistent and dependable heating performance.

Built as a split-system configuration, this setup separates indoor and outdoor components to support quieter operation, flexible installation options, and reliable year-round comfort when properly installed.

J5AC3060A1000AA

Submittals –Submittals_J5AC3060A1000AA (6)

Energy Guide –J5AC3060A1000AA (5)

Sell Sheet –SellSheet_English_AirConditioner_R-454B (8)

Installation Manual –InstallationManual_English_J5AC3_13.4SEER2 (8)

J5MXCD010AC6HCA

Submittals –Submittal_J5MXC-SUB-1A (5)

Sell Sheet –SellSheet_English_IndoorCoils_R-454B (5)

Installation Manual –InstallationManual_English_J5MXC (5)

J801V120DM5SE

Submittals –Submittal_J801V

Energy Guide –Energy_Guides_J801V120DM5S

Sell Sheet –SellSheet_Furnace_80_96_percent (1)

Installation Manual –InstallationManual_J801V
