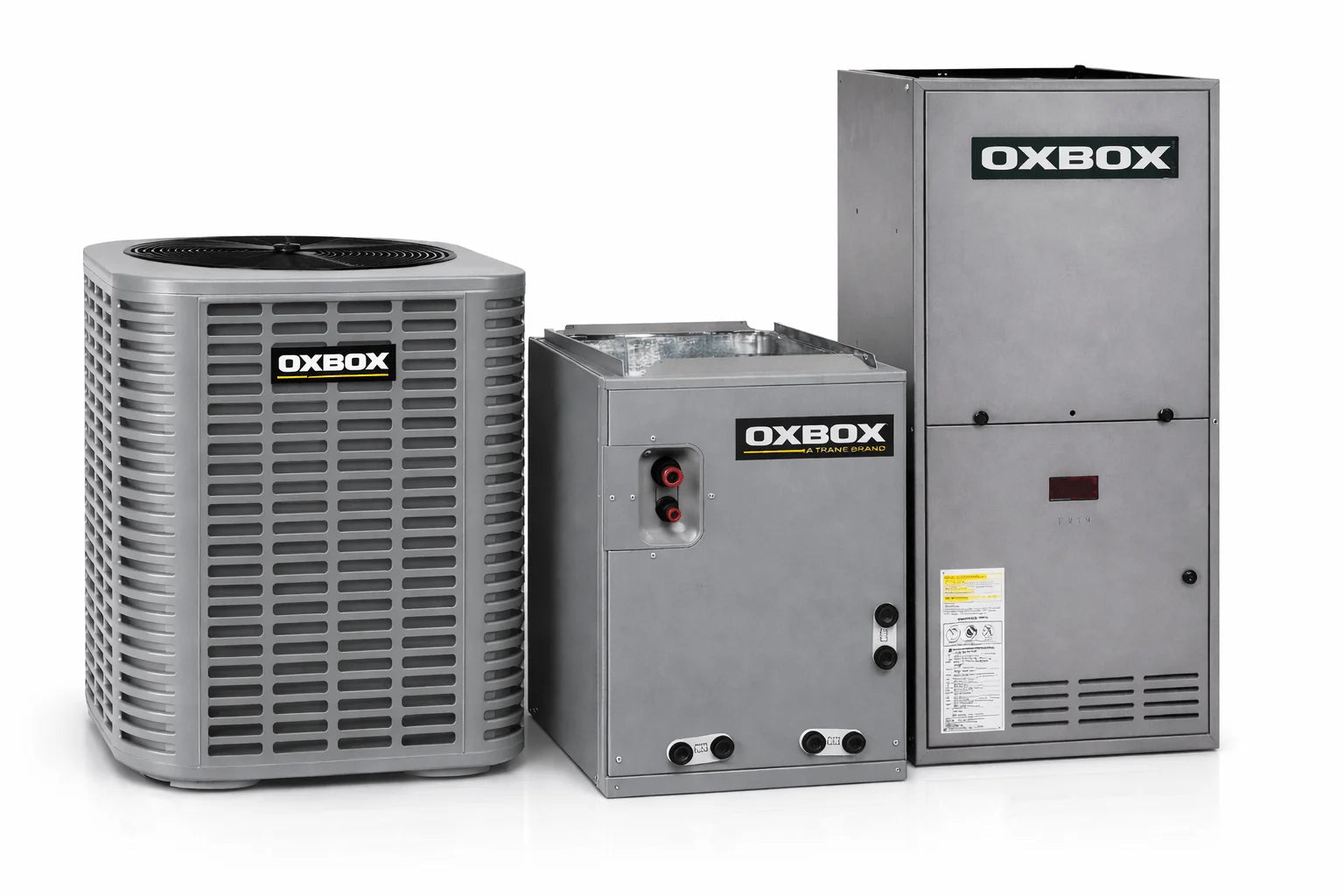

OXBOX BY TRANE 3 Ton 13.4 SEER2 R454B Air Conditioning System with A-Cabinet Cased Coil & 80K BTU 80% AFUE Gas Furnace – J5AC3036A1000A, J5MXCA003AC6HCA, J801V080BM4SE

• J5AC3036A1000A outdoor air conditioner provides 3-ton cooling capacity, 13.4 SEER2 efficiency, and R454B refrigerant operation.

• J5MXCA003AC6HCA evaporator coil features an A-cabinet cased design and supports 1.5–3.0 ton systems for proper airflow.

• J801V080BM4SE gas furnace delivers 80,000 BTU output with single-stage 80% AFUE heating performance.

• B-cabinet furnace configuration ensures proper fit and compatibility within matched system installations.

• Matched Oxbox system design ensures component compatibility, airflow balance, and dependable long-term performance.

The Oxbox J5AC3036A1000A air conditioning system is engineered to provide dependable cooling performance combined with reliable gas heating for residential applications. The system features a 3-ton straight-cool outdoor air conditioner rated at 13.4 SEER2, operating with R454B refrigerant to meet current efficiency standards while delivering consistent cooling capacity.

Cooling airflow and heat transfer are supported by the J5MXCA003AC6HCA A-cabinet cased evaporator coil, designed for 1.5–3.0 ton applications. This coil helps maintain proper airflow balance and efficient heat exchange when paired with the outdoor unit, supporting stable and reliable system performance.

Heating is provided by the J801V080BM4SE gas furnace, delivering 80,000 BTU of heating capacity with single-stage operation and 80% AFUE efficiency. Housed in a B cabinet, the furnace provides dependable heating performance and straightforward installation for residential system layouts. Together, these Oxbox components form a matched system engineered for simplified installation and long-term comfort.

J5AC3036A1000A

Submittals –Submittals_J5AC3036A1000AA (3)

Energy Guide –J5AC3036A1000AA (3)

Sell Sheet –SellSheet_English_AirConditioner_R-454B (3)

Installation Manual-InstallationManual_English_J5AC3_13.4SEER2 (3)

J5MXCA003AC6HCA

Submittals –Submittal_J5MXC-SUB-1A (3)

Sell Sheet –SellSheet_English_IndoorCoils_R-454B (3)

Installation Manual –InstallationManual_English_J5MXC (3)

J801V080BM4SE

Submittals –Submittal_J801V (2)

Energy Guide –Energy_Guides_J801V080BM4S

Sell Sheet –SellSheet_Furnace_80_96_percent (3)

Installation Manual –InstallationManual_J801V (2)
