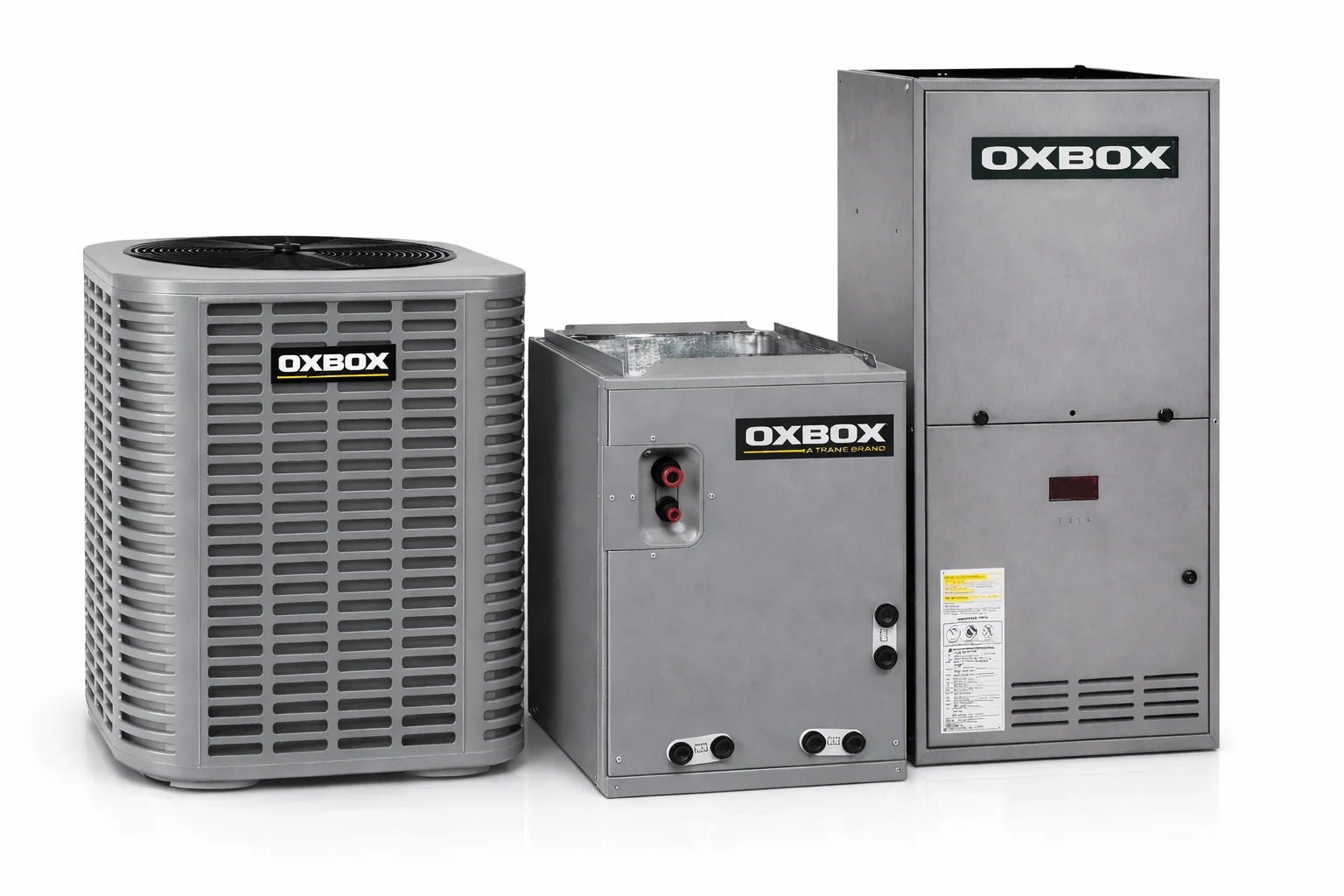

OXBOX BY TRANE 3 Ton 13.4 SEER2 R454B Air Conditioning System with B-Cabinet Cased Coil & 60K BTU 80% AFUE Gas Furnace – J5AC3036A1000AA, J5MXCB004AC6HCA, J801V060BM4SE

J5AC3036A1000AA outdoor air conditioner provides 3-ton cooling capacity, 13.4 SEER2 efficiency, and R454B refrigerant operation.

J5MXCB004AC6HCA evaporator coil features a B-cabinet cased design and supports 1.5–3.0 ton systems for proper airflow.

J801V060BM4SE multi-position gas furnace delivers 60,000 BTU output with single-stage 80% AFUE heating performance.

Multi-position furnace design allows flexible installation to match common residential layouts.

Matched Oxbox system design ensures compatibility, airflow balance, and dependable long-term performance.

The Oxbox J5AC3036A1000AA air conditioning system is engineered to deliver dependable cooling performance combined with reliable gas heating for residential applications. The system features a 3-ton straight-cool outdoor air conditioner rated at 13.4 SEER2, operating on R454B refrigerant to meet current efficiency standards while providing consistent cooling capacity.

Cooling airflow and heat transfer are supported by the J5MXCB004AC6HCA B-cabinet cased evaporator coil, designed for 1.5–3.0 ton applications. This coil helps maintain proper airflow balance and efficient heat exchange when paired with the outdoor unit, supporting stable and reliable system performance.

Heating is provided by the J801V060BM4SE multi-position gas furnace, delivering 60,000 BTU of heating capacity with single-stage operation and 80% AFUE efficiency. Designed for flexible installation, the furnace operates on 115/1/60 electrical service and provides dependable residential heating performance. Together, these Oxbox components form a matched system designed for simplified installation and long-term comfort.

J5AC3036A1000AA

Submittals –Submittals_J5AC3036A1000AA

Energy Guide –J5AC3036A1000AA (1)

Sell Sheet –SellSheet_English_AirConditioner_R-454B (2)

Installation Manual –InstallationManual_English_J5AC3_13.4SEER2 (1)

J5MXCB004AC6HCA

Submittals –Submittal_J5MXC-SUB-1A (1)

Sell Sheet –SellSheet_English_IndoorCoils_R-454B (1)

Installation Manual –InstallationManual_English_J5MXC (1)

J801V060BM4SE

Submittals –TechSpecs_J801V

Energy Guide –EnergyGuide_J801V060BM4SEA

Sell Sheet –SellSheet_Furnace_80_96_percent (2)

Installation Manual –InstallationManual_J801V (2)
