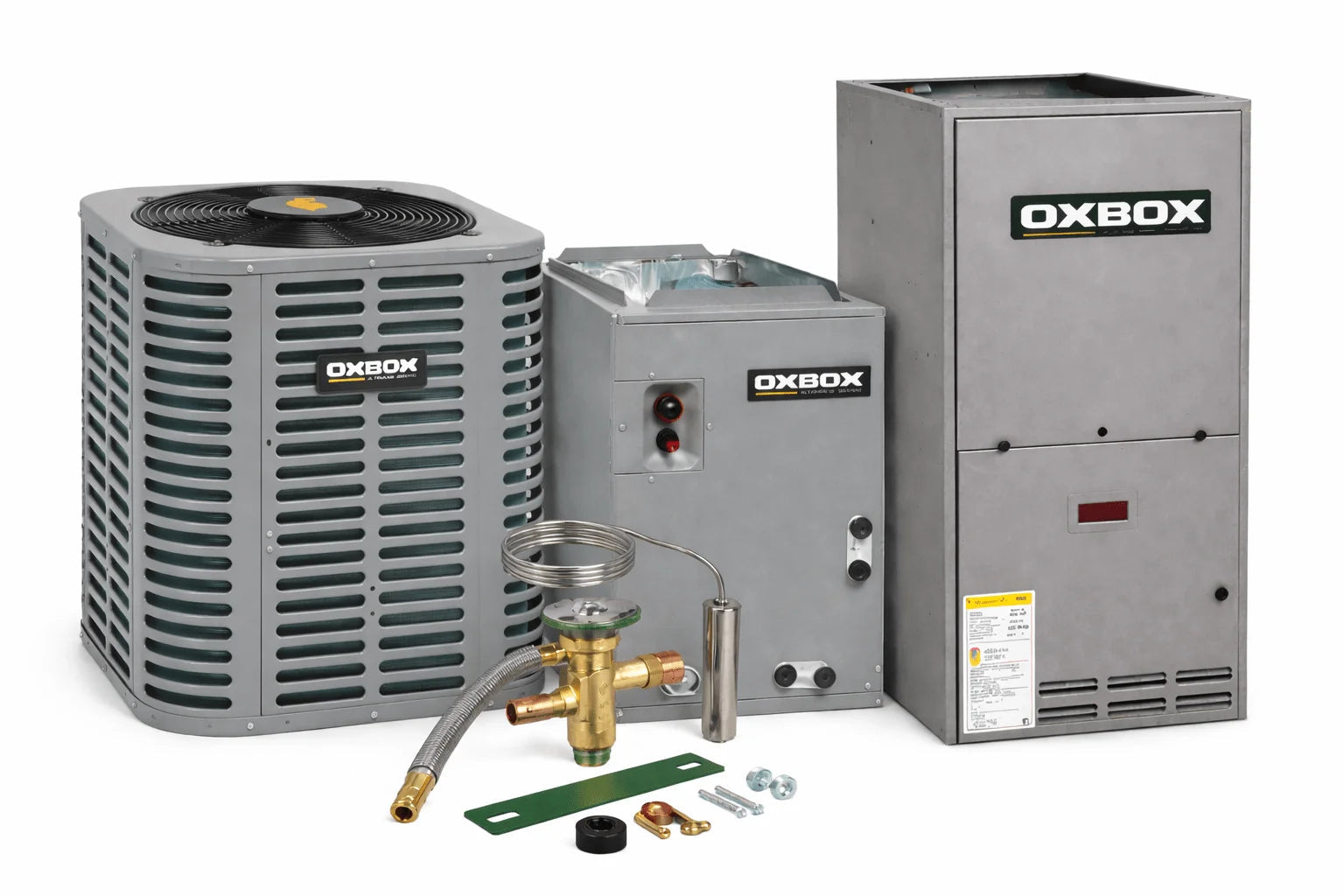

OXBOX BY TRANE 3 Ton Dual-Fuel Heat Pump System with 80% AFUE Gas Furnace – 5AYTXVH3A1836A ,J5HP5036A1000AA, J5MXCB016AC6HCA ,J801V080BM4SE

This Oxbox system is a split-system heat pump paired with a gas furnace, designed to deliver efficient cooling, dependable heat pump heating, and reliable gas heating for residential applications. The split-system configuration allows for quiet operation, balanced airflow, and flexible installation.

The system includes the J5HP5036A1000AA outdoor heat pump, rated at 3.0 tons with 14.3 SEER2 efficiency and engineered for R454B refrigerant, providing consistent year-round performance. Heat transfer is supported by the J5MXCB016AC6HCA cased evaporator coil, a B-cabinet design compatible with 1.5–3.5 ton applications, ensuring proper airflow and system matching.

For precise refrigerant control, the system includes the 5AYTXVH3A1836A TXV kit, compatible with 1.5–3.0 ton R454B coil and air handler applications. Heating is provided by the J801V080BM4SE gas furnace, featuring single-stage operation, 80% AFUE efficiency, and 80,000 BTUH heating capacity in a B-cabinet configuration. When properly installed, this matched system delivers dependable comfort and long-term reliability.

J5HP5036A1000AA -

Submittals –Submittals_J5HP5036A1000AA (3)

Energy Guide –J5HP5036A1000AA (3)

Sell Sheet –SellSheet_English_HeatPump_R-454B (12)

J5MXCB016AC6HCA -

Submittals –Submittal_J5MXC-SUB-1A (10)

Sell Sheet –SellSheet_English_IndoorCoils_R-454B (12)

Installation Manual –InstallationManual_English_J5MXC (10)

J801V080BM4SE -

Submittals –Submittal_J801V (7)

Energy Guide –Energy_Guides_J801V080BM4S (2)

Sell Sheet –SellSheet_Furnace_80_96_percent (12)

Installation Manual –InstallationManual_J801V (7)
