3 Ton 14.3 SEER2 Heat Pump – J5HP5036A1000AA: Provides efficient cooling and dependable heat pump heating using R454B refrigerant for year-round residential comfort
B-Cabinet Cased Evaporator Coil – J5MXCB016AC6HCA: Designed for 1.5–3.5 ton applications to ensure proper system matching, balanced airflow, and reliable heat transfer
R454B TXV Kit – 5AYTXVH3A1836A: Engineered for 1.5–3.0 ton coils and air handlers to deliver accurate refrigerant metering and improved operating efficiency
96% AFUE Two-Stage Gas Furnace – J962V080BU3SA: Delivers 80,000 BTU heating capacity with enhanced comfort control, quieter performance, and reduced energy consumption
Matched Split-System Configuration: All components are engineered to work together for long-term reliability, consistent airflow, and dependable residential heating and cooling performance

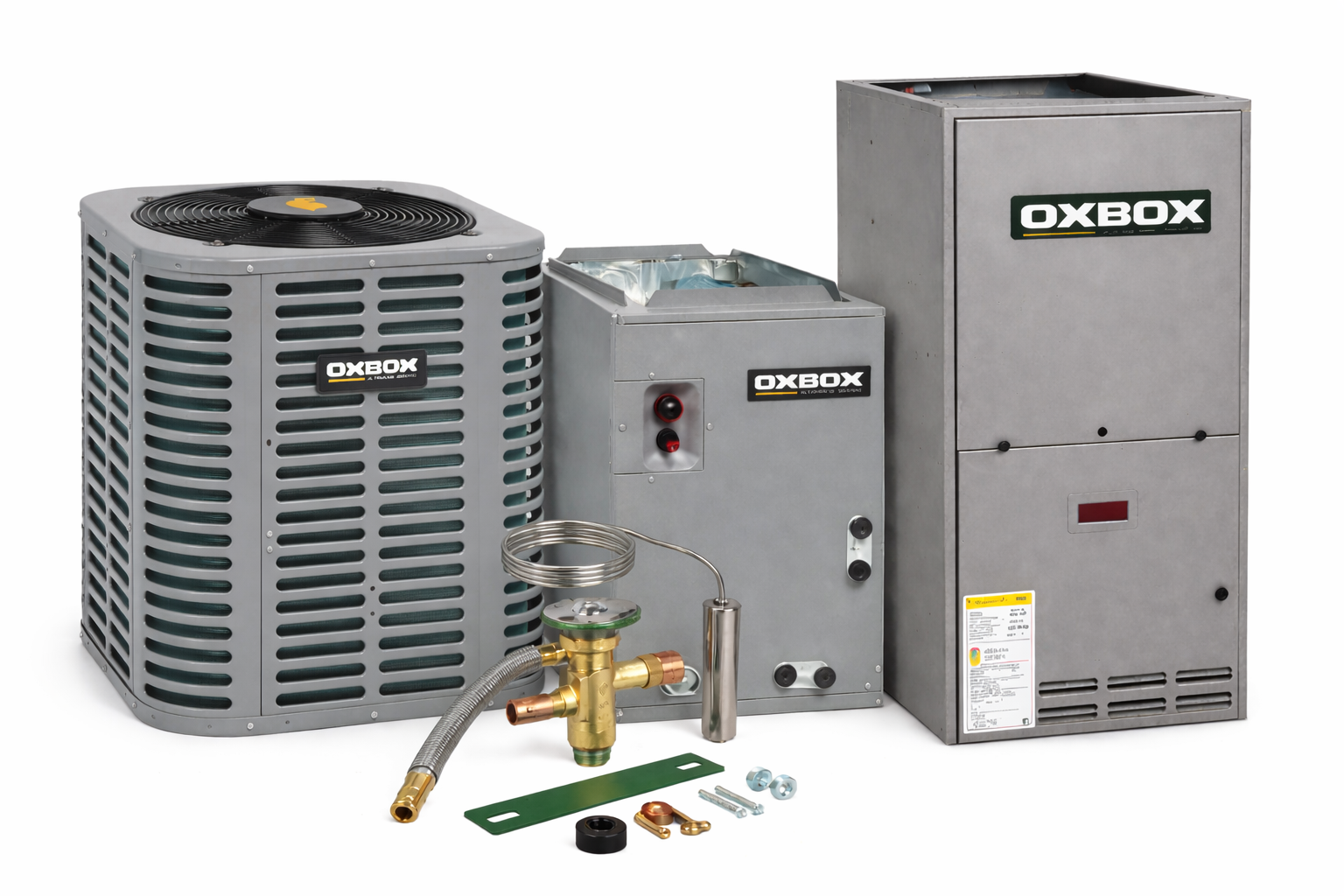

The Oxbox J5HP5036A1000AA heat pump system is designed to deliver efficient cooling, dependable heat pump operation, and high-efficiency gas heating for residential applications. The system includes a 3-ton heat pump condenser rated at 14.3 SEER2, operating with R454B refrigerant to meet modern efficiency standards while providing consistent year-round comfort.
Airflow and heat transfer are supported by the J5MXCB016AC6HCA B-cabinet cased evaporator coil, engineered to accommodate 1.5–3.5 ton applications. This coil ensures proper system matching, balanced airflow, and reliable performance when paired with the outdoor unit. The system also includes the 5AYTXVH3A1836A TXV kit, designed for 1.5–3.0 ton coils and air handlers using R454B refrigerant, which provides accurate refrigerant metering and improved operating efficiency.
Heating is provided by the J962V080BU3SA gas furnace, delivering 80,000 BTU of heating capacity with two-stage operation and 96% AFUE efficiency. This high-efficiency furnace improves comfort control, reduces energy consumption, and supports quieter operation. All components are engineered to operate together as a matched Oxbox system for long-term reliability and consistent residential comfort.
J5HP5036A1000AA
Submittals – Submittals_J5HP5036A1000AA (1)
Energy Guide –J5HP5036A1000AA (1)
Sell Sheet –SellSheet_English_HeatPump_R-454B (9)
Installation Manual- InstallationManual_English_J5HP5_14.3SEER2 (9)
J5MXCB016AC6HCA
Submittals –Submittal_J5MXC-SUB-1A (7)
Sell Sheet –SellSheet_English_IndoorCoils_R-454B (8)
Installation Manual- InstallationManual_English_J5MXC (7)
J962V080BU3SA
Submittals –Submittal_J962VSAA (5)
Energy Guide –J962V080BU3S (1)
Sell Sheet –SellSheet_Furnace_80_96_percent (8)
Installation Manual- InstallationManual_J962VSAA (5)
