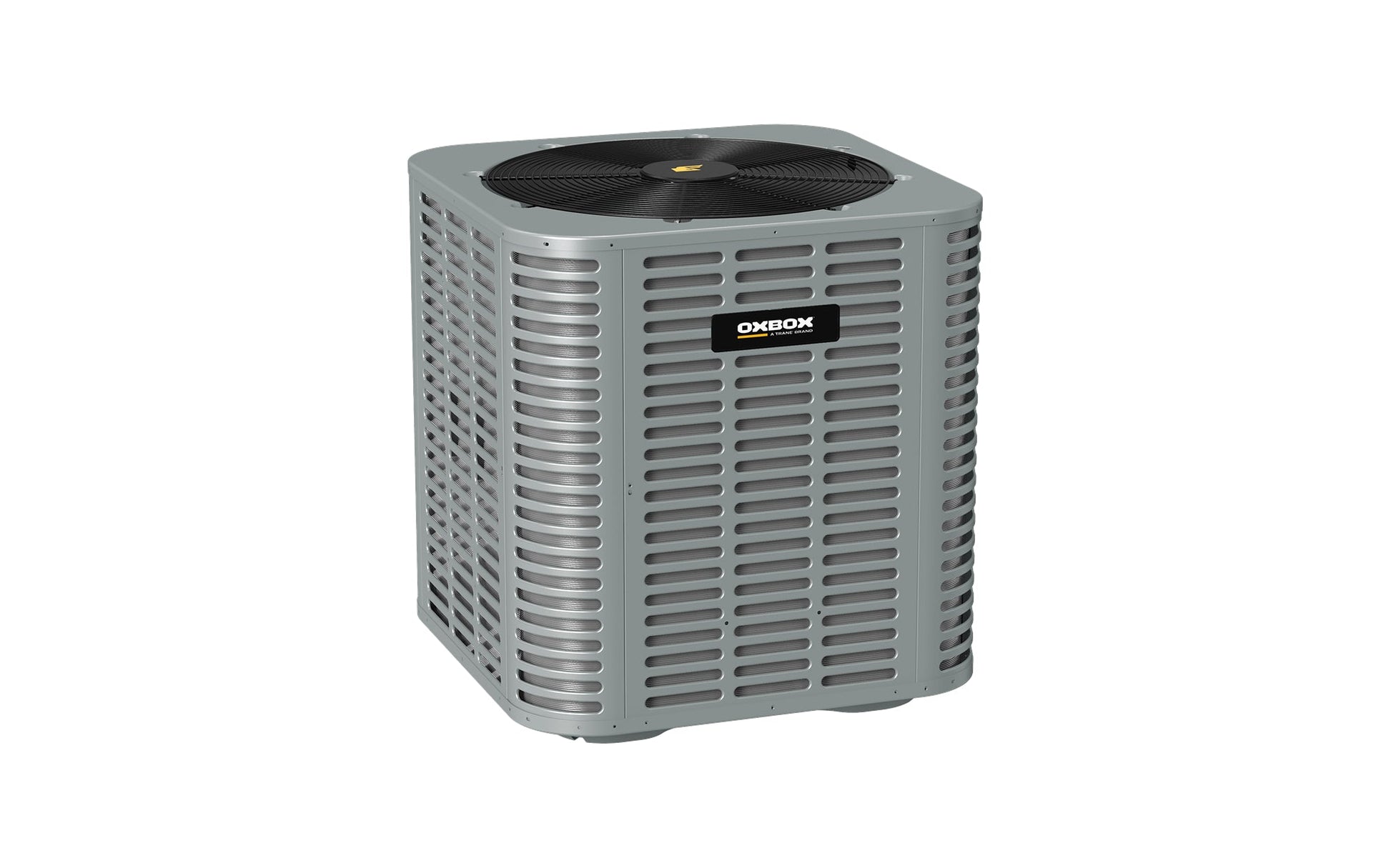

J5HP5042A1000 is an Oxbox J5HP5 series outdoor heat pump condenser unit (split-system) — essentially the outdoor section of a heat pump for residential HVAC. Oxbox HVAC Shop+1
What the Model Number Means
-
Series: Oxbox J5HP5 (heat pump lineup with R-454B refrigerant) Oxbox HVAC Shop+1
-
5042 → ~3.5-ton nominal cooling capacity (≈ 42,000 BTU/h) Oxbox HVAC Shop+1
-
A1000 → Manufacturer’s internal model code/series indicator (outdoor unit) Oxbox HVAC Shop
📊 Typical Specs (Heat Pump Condenser)
-
Nominal Capacity: 3.5 tons (~42,000 BTU) cooling Oxbox HVAC Shop
-
Refrigerant: R-454B (lower-GWP refrigerant) Oxbox HVAC Shop
-
SEER2 Efficiency: ~14.3 (seasonal cooling efficiency) Oxbox HVAC Shop
-
Compressor: Single-stage scroll (standard for this series) device.report
-
Sound & Dimensions: Approx. 74 dB sound level and ~28″ W × 28″ D × 33″ H size (3.5-ton heat pumps in this line) device.report
Application
This is the outdoor half of a split-system heat pump. To function as a complete HVAC system, it must be paired with a compatible indoor coil or air handler and appropriate controls/thermostat.
Heat pumps both cool in warm weather and provide heat in mild/cool conditions by reversing the refrigeration cycle — making them a combined cooling/heating solution. device.report
If you need submittal sheet details (electrical data, line sizes, weight, dimensions) or indoor unit pairing options that match J5HP5042A1000, just let me know!
