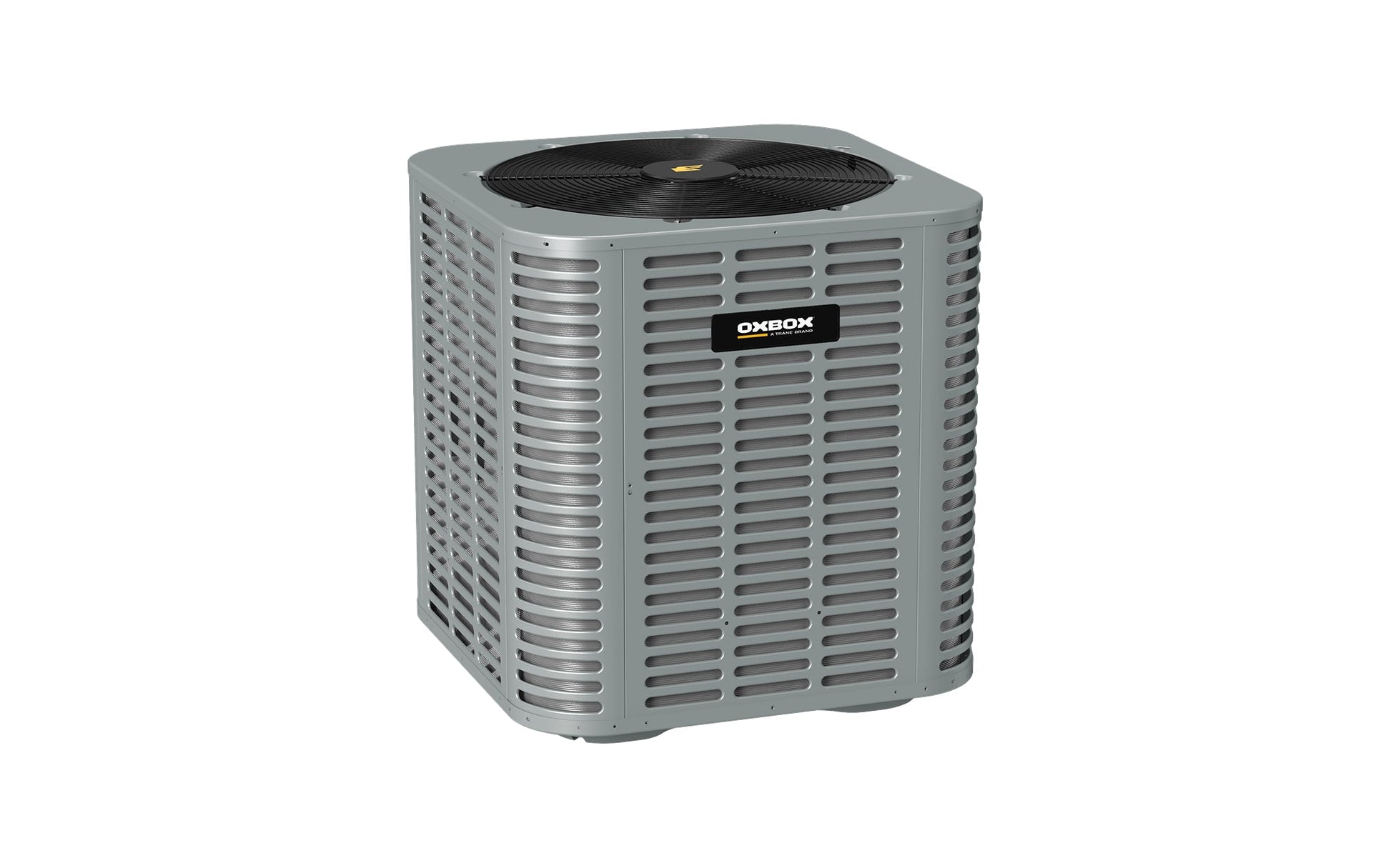

Oxbox J5HP5 Series 14.3 SEER2 | R-454B | 5 Ton (61,000 BTU) Heat Pump Condenser

J5HP5061A1000 is part of the Oxbox J5HP5 series of outdoor heat pump condenser units — the outdoor half of a split-system heat pump used for both cooling and heat-pump heating. It’s designed to be paired with a matched indoor coil or air handler plus controls to form a complete HVAC system.

According to Oxbox product line data for the J5HP5 series:

• Series: J5HP5 (R-454B refrigerant)

• Refrigerant: R-454B — lower global warming potential refrigerant.

• Outdoor Unit Type: Split-system heat pump condenser (requires indoor matching unit).

• Nominal Capacity: 5.0 Tons (≈ 60,000 BTU).

• Compressor Type: Two-stage scroll (improves part-load operation vs. single-stage) — specific to the “061” variant.

• Sound Level: ~79 dB (approximate for this model in the series). Dimensions Footprint: ~29.13″ W × 29.13″ D × 33.19″ H (standard for 5-ton units).

• Refrigerant Lines: Typical R-454B sized lines for 5-ton application (exact sizes found on full spec sheet — let me know if you want that)

 What It Does

This unit operates as the outdoor side of a heat pump, meaning it:

• Cools your home in cooling mode during warmer weather.

• Provides heating in mild to moderate cold climates by reversing the refrigeration cycle.

• Two-stage compressor operation gives better comfort and efficiency at part-load compared to single-stage systems.
